Product Description

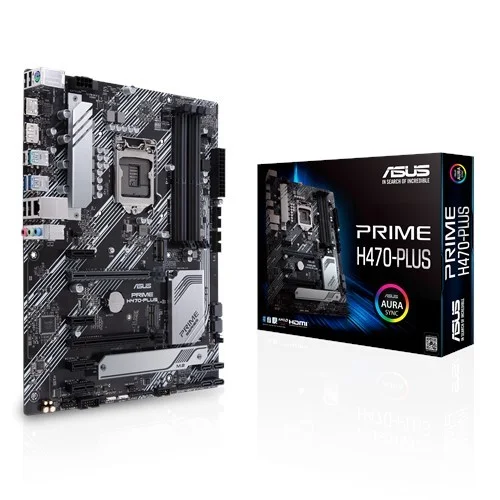

Unlock Your Potential with the ASUS Prime H470-Plus Motherboard
The ASUS Prime H470-Plus motherboard is designed for DIY PC builders and daily users who want to unleash the full potential of their 10th Gen Intel Core processors. With its robust power design, comprehensive cooling solutions, and intelligent tuning options, this motherboard provides a range of performance tuning options to perfectly match your work style.
Key Features and BenefitsThe ASUS Prime H470-Plus motherboard boasts the following key features and benefits:
- Support for 10th Gen Intel Core Processors - Take advantage of the latest Intel Core processors and their enhanced performance capabilities.
- Dual Channel Memory Architecture - Enjoy faster memory speeds and improved system performance with support for up to 128GB of dual channel memory.
- Multiple M.2 Slots and SATA Ports - Expand your storage options with up to 2 M.2 slots and 6 SATA ports, supporting RAID 0, 1, 5, and 10 configurations.
- Realtek ALC887 Audio Codec - Experience high-quality 8-channel HD audio with support for Jack-detection, Multi-recording, and up to 24-bit/192kHz playback.
- Realtek RTL8111H LAN Chipset - Enjoy fast and reliable networking with this high-performance LAN chipset.
The ASUS Prime H470-Plus motherboard features a range of exclusive ASUS technologies, including:
- AI Suite 3 - A comprehensive software suite that provides advanced tuning options and system monitoring.
- RAMCache III - A performance-enhancing technology that accelerates system performance by caching frequently accessed data.
- GameFirst VI - A network optimization tool that prioritizes online gaming traffic for smoother and faster gameplay.
- Aura Sync - A customizable lighting system that allows you to personalize your PC's lighting effects with a wide range of colors and patterns.
Part ID: #CAN-01950
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel H470
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Expansion Slots
PCI
Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel H470 Chipset 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe 3.0 x1
M.2 Socket
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
Memory
Type
Dual Channel Memory Architecture
Slots
4 x DIMM
Supported Memory
2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Mamory
128GB
Graphics
Graphics
Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI
1 x HDMI 1.4b
Display Port (s)
1 x DisplayPort 1.4
USB (s)
Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Front USB Port ( Total 7 ) 4 x USB 3.2 Gen 1 port(s) 3 x USB 2.0 port(s)
LAN Port (s)
Realtek RTL8111H
Supported Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel H470 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports
1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Warranty Information
Manufacturing Warranty
3 Years
Others
Special Features
Wireless Data Network: M.2 slot only (Key E) (Support PCIe interface) [ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update AI Charger WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS header - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Onboard red LED lighting accent Rear audio USB Type-C connector
Part ID: #CAN-01950
Last Updated: 1 month ago
