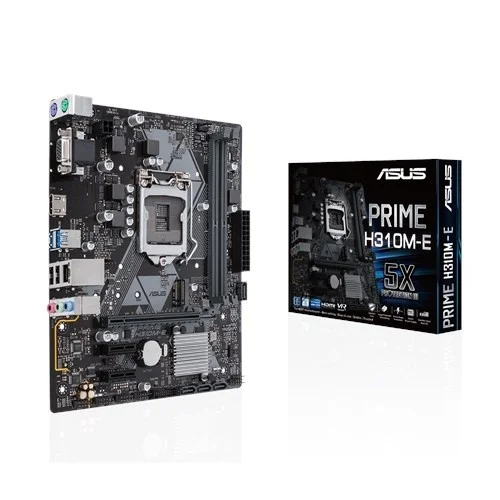

Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard

Status
Check Stores
2 stores
Lowest 7,000 BDT
Price Range Single price listing
Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard

Product Description

Upgrade Your Gaming Rig with ASUS PRIME H310M-E R2.0

Designed for gamers and content creators, the ASUS PRIME H310M-E R2.0 is a powerful mATX motherboard compatible with Intel 8th gen processors. This board delivers exceptional performance, stunning visuals, and seamless connectivity, making it an ideal choice for building a high-performance gaming PC or content creation workstation.

Key Features and Benefits

  • Supports Intel 8th gen Core i7/Core i5/Core i3/Pentium/Celeron processors
  • Dual channel DDR4 memory with maximum capacity of 32GB and speeds up to 2666MHz
  • Ultrafast 32Gbps M.2 SATA 6Gbps and USB 3.1 Gen 1 interface
  • Multi-VGA output with HDMI 1.4b and D-sub ports supporting resolutions up to 4096 x 2160 @ 24 Hz
  • Realtek ALC887 8-Channel High Definition Audio CODEC with premium Japanese audio capacitors

Advanced Technologies and Performance Enhancements

The ASUS PRIME H310M-E R2.0 features a range of advanced technologies and performance enhancements, including:

  • ASUS Fan Xpert for precise fan control and improved cooling performance
  • ASUS Optimem for stable performance and optimal memory compatibility
  • LED-illuminated design for a sleek and visually appealing build
  • Audio Shielding for reduced multi-lateral interference and improved audio quality

Product Specifications

For a comprehensive list of product specifications, please refer to the table below:

  • Form Factor: mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
  • Chipset: Intel H310
  • Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
  • Expansion Slots: 1 x PCIe 3.0/2.0 x16 (x16 mode, gray), 2 x PCIe 2.0 x1, 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
  • Memory: 2 x DIMM Slots, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Maximum Mamory 32GB
  • Graphics: Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
  • Warranty Information: Manufacturing Warranty 03 years
Part ID: #CAN-01947 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer Asus PRIME H310M-E R2.0 8th Gen mATX Motherboard
Check Stock Call for Price 4 hours ago
Buy Now
Nexus Computer ASUS PRIME H310M-E R2.0 LGA 1151 Micro ATX Intel Motherboard
Check Stock 7,000 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset Intel® H310
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Form Factor mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )

Expansion Slots

PCI 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1
M.2 Socket 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)

Memory

Type 2 x DIMM
Slots DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supported Memory DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Mamory 32GB

Graphics

Graphics Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory 1024 MB

Connector & Ports

HDMI 1 x HDMI
USB (s) Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
LAN Port (s) Realtek® RTL8111H, 1 x Gigabit LAN
Supported Storage Intel® H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1 4 x SATA 6Gb/s port(s), gray,
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
D-Sub (s) 1 X D-sub

Warranty Information

Manufacturing Warranty 03 years
Part ID: #CAN-01947 Last Updated: 1 month ago
