Product Description
Unlock Unparalleled Performance with the ASUS PRIME B860M-K Motherboard
The ASUS PRIME B860M-K is designed for enthusiasts and professionals seeking a high-performance Intel LGA1851 mATX motherboard that delivers exceptional power delivery, rock-solid stability, and effortless overclocking capabilities. With its robust feature set and sleek design, this motherboard is perfect for building a powerful gaming PC or content creation workstation.
Key Features and Benefits
- Intel LGA1851 socket for 12th and 13th Gen Core processors
- High-quality 4+2 phase power design for optimal power delivery
- Support for DDR5 memory up to 128GB, 6400MT/s
- 5 GB LAN and Wi-Fi 6 (802.11ax) for fast networking
- High-quality audio capacitors and premium audio capacitors for immersive sound
- ASUS Aura Sync RGB lighting for customizable aesthetics
Proprietary Technologies
The ASUS PRIME B860M-K motherboard is equipped with a range of innovative technologies that enhance performance, stability, and overall user experience. These include:
ASUS AI Overclocking
Automatically detects and optimizes CPU and memory settings for the best possible performance, with the ability to adjust and fine-tune settings for maximum overclocking potential.
ASUS OptiMem
Memory tuning technology that allows for increased memory frequency and enhanced stability, ensuring that your system runs smoothly and efficiently.
ASUS Safe Eye
Advanced power delivery and protection system that safeguards your system from power surges, overvoltage, and overheating, ensuring safe and reliable operation even under intense workloads.
Part ID: #CAN-09493
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Global Brand PLC

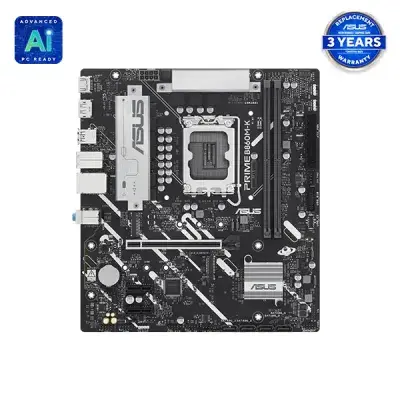

ASUS PRIME B860M-K Intel LGA1851 mATX Motherboard
|
In Stock | Call for Price | 5 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
USB
Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A. USB_E1 port, USB_E2 port, USB_E3 port, and USB_E4 port share the bandwidth.
BIOS
256(128+128) Mb Flash ROM, UEFI AMI BIOS
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Model
PRIME B860M-K
Memory
2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Chipset
Intel B860 Chipset
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Graphics
1 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.
Warranty
3 Years Replacement Warranty *(Terms and Conditions Applied)
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 anchor package Documentation 1 x Quick start guide
Form Factor
micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Key Feature 1
Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
Key Feature 2
Socket: Intel Socket LGA1851
Key Feature 3
Memory: 2 x DIMM slots, max. 128GB, DDR5
Key Feature 4
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Key Feature 5
Features: Advanced AI PC-ready, PCIe 5.0 slots, EZ PC DIY, AI Intelligence, Aura Sync
Manageability
WOL by PME, PXE
Expansion Slots
Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Operating System
Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)
Special Features
ASUS 5X PROTECTION III - DIGI+VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen2 headers
Software Features
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Back Panel I/O Ports
1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
