Product Description

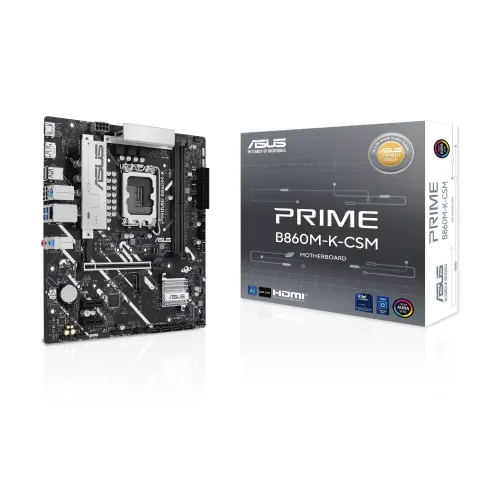

The ASUS PRIME B860M-K-CSM LGA 1851 micro-ATX Motherboard is designed for professionals, content creators, and gamers who demand exceptional performance, stability, and long-term reliability. With its future-proof features and cutting-edge technology, this motherboard is perfect for building a high-performance desktop that can keep up with your demanding workloads.
Key Features and Performance Highlights:- Supports the latest Intel Core Ultra Series 2 processors with LGA 1851 socket
- Dual DDR5 DIMM slots with up to 128GB of high-speed memory and ASUS AEMP III technology
- PCIe 5.0 storage and two M.2 slots for fast NVMe SSD performance
- Realtek 2.5Gb Ethernet for stable networking and HDMI 2.1 and DisplayPort 1.4 for high-resolution displays
- 6+1+1+1 phase digital VRM design for stable power delivery and efficient cooling with ASUS Fan Xpert 2+ software
The ASUS PRIME B860M-K-CSM Motherboard features several proprietary technologies and features that enhance its performance, stability, and user experience. Some of these include:
- ASUS 5X PROTECTION III: A comprehensive suite of protection features that include DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+, and Stainless-steel back I/O
- ASUS Q-Design: A set of innovative design features that include Q-Dashboard, Q-DIMM, Q-LED Core, and Q-Slot
- ASUS Thermal Solution: A comprehensive cooling solution that includes onboard heatsinks and ASUS Fan Xpert 2+ software
- ASUS EZ DIY: A set of tools and features that make it easy to configure and customize your system
Part ID: #CAN-01035
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus PRIME B860M-K-CSM LGA 1851 micro-ATX Motherboard
|
In Stock | 18,999 | 1 week ago | |
|
Ultra Technology
Asus PRIME B860M-K-CSM LGA 1851 micro-ATX Motherboard
|
In Stock | 19,000 | 4 hours ago | |
|
TechLand BD
Asus Prime B860M-K-CSM Intel B860 LGA1851 DDR5 M-ATX Motherboard
|
In Stock | 19,400 | 4 hours ago | |
|
Global Brand PLC
ASUS PRIME B860M-K-CSM Intel LGA1851 mATX Motherboard
|
In Stock | 19,400 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset
Intel B860 Chipset
BIOS
256(128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Expansion Slots
PCI
Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® B860 Chipset 2 x PCIe 4.0 x1 slots
M.2 Socket
Total supports 2 x M.2
Memory
Type
DDR5
Slots
2 x DIMM
Supported Memory
Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI
1 x HDMI 2.1
Display Port (s)
1 x DisplayPort 1.4
USB (s)
Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A)** Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C® power delivery output: max. 5V/3A. ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
LAN Port (s)
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O Ports
Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header Back Panel I/O Ports 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty
3 Year warranty
Key Features
Model
PRIME B860M-K-CSM
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
2x DDR5, Max 128GB, 8800+ MT/s (OC)
Graphics Output
1x DisplayPort, 1x HDMI
Features
2x M.2, Realtek 2.5Gb LAN
