Product Description

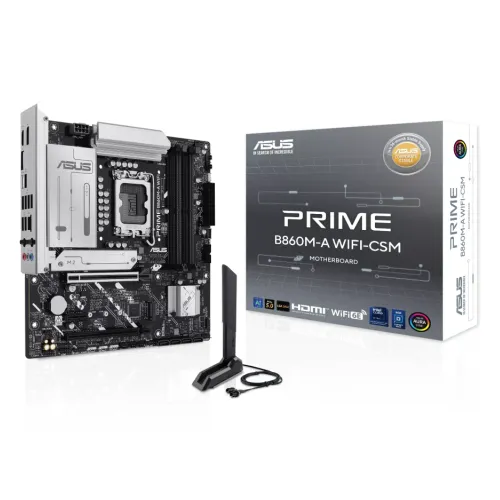

Unlock Unparalleled Performance with the ASUS PRIME B860M-A WIFI-CSM Motherboard
The ASUS PRIME B860M-A WIFI-CSM Motherboard is designed for enthusiasts and professionals seeking a reliable and high-performance platform for their modern systems powered by Intel Core Ultra Processors Series 2 on the LGA1851 socket. With its robust feature set and advanced technology, this motherboard delivers exceptional performance, versatility, and ease of use, making it the perfect choice for building a powerful desktop PC.
Key Features and Benefits:
- Supports Intel Core Ultra Processors Series 2 on the LGA1851 socket, Intel B860 chipset, and up to 256GB DDR5 memory with speeds reaching 8666+MT/s overclocked
- Features two DisplayPort, one HDMI, and a USB 20Gbps Type-C port supporting DisplayPort Alt Mode for exceptional graphics output
- Includes two M.2 slots supporting PCIe 5.0 x4 and PCIe 4.0 x4, plus four SATA 6Gb/s ports with RAID 0,1,5,10 for ample storage options
- Integrates Realtek 2.5Gb Ethernet with ASUS LANGuard for stable networking and Wi-Fi 6E supporting 2.4, 5, and 6GHz bands, plus Bluetooth 5.3 for modern wireless connectivity
- Supports ASUS 5X Protection III, Q-Design, Thermal Solution, Aura Sync, and EZ DIY features for enhanced durability and customization
Advanced Technologies for Enhanced Performance:
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O
ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot
ASUS Thermal Solution - M.2 heatsink - VRM heatsink design
ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen2 headers
Unlock Your PC's Full Potential with the ASUS PRIME B860M-A WIFI-CSM Motherboard.
Part ID: #CAN-01066
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology
Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard
|
In Stock | 25,700 | 4 hours ago | |
|
Star Tech
Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard
|
In Stock | 26,900 | 1 week ago | |
|
TechLand BD
ASUS PRIME B860M-A WIFI-CSM LGA1851 DDR5 mATX Motherboard
|
In Stock | 26,900 | 5 hours ago | |
|
Global Brand PLC
ASUS PRIME B860M-A WIFI-CSM Intel LGA1851 mATX Motherboard
|
In Stock | 26,900 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset
Intel B860 Chipset
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
Intel Core Ultra Processors(series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
M.2 Socket
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
Memory
Type
DDR5
Slots
4x DIMM
Supported Memory
Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory
Maximum Memory Capacity 256GB
Graphics
Graphics
2 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@120Hz as specified in DisplayPort 1.4. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
2 x DisplayPort
USB (s)
Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
LAN Port (s)
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty
3 Year warranty
Key Features
Model
PRIME B860M-A WIFI-CSM
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
4x DDR5, Max 256GB, 8666+ MT/s (OC)
Graphics Output
2x DisplayPort, 1x HDMI, 1x USB (20Gbps)
Features
2x M.2, Realtek 2.5Gb LAN, Wi-Fi 6E, Bluetooth 5.3
Part ID: #CAN-01066
Last Updated: 1 month ago
