Product Description
Engineered by ASUS, this motherboard is featuring a **ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **26,300 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01073
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Skyland BD
Asus PRIME B860-PLUS-CSM LGA 1851 ATX Motherboard
|
In Stock | 26,000 | 2 hours ago | |
|
Star Tech
Asus PRIME B860-PLUS-CSM LGA 1851 ATX Motherboard
|
In Stock | 26,300 | 2 hours ago | |
|
Sell Tech
Asus PRIME B860-PLUS-CSM LGA 1851 ATX Motherboard
|
In Stock | 28,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset
INTEL B860
BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI
Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket
3x M.2
Memory
Type
DDR5
Slots
4
Supported Memory
4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)*" Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory
Maximum Memory Capacity 256GB
Graphics
Graphics
1 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4a
USB (s)
Rear USB (Total 6 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps port (1 x USB Type-C®) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
M.2 slot only (Key E, CNVi & PCIe) Wi-Fi module is sold separately.
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
RAID
SATA RAID 0/1/5/10
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty
3 Year warranty
Key Features
Model
PRIME B860-PLUS-CSM
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
4x DDR5, Max 256GB, 8666+ MT/s (OC)
Graphics Output
1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
Features
3x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01073
Last Updated: 2 days ago

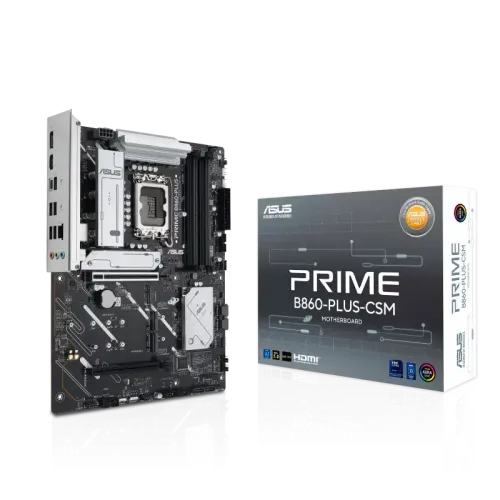

The Asus PRIME B860-PLUS-CSM LGA 1851 ATX Motherboard is a powerful and dependable alternative for Intel Core Ultra Processors Series 2 that supports Intel Turbo Boost Technologies 2.0 and 3.0. The Asus PRIME B860-PLUS-CSM Motherboard, based on the Intel B860 chipset, has four DIMM slots that can handle up to 256GB of DDR5 memory at rates of up to 8666+MT/s OC, as well as Intel XMP and ASUS AEMP III for improved memory performance. This Asus motherboard has outstanding graphics with DisplayPort 1.4 and HDMI 2.1, both of which enable 4K at 60Hz resolution. Expansion capabilities are top-notch, with a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot, complemented by three M.2 slots one running PCIe 5.0 x4 and two PCIe 4.0 x4 and four SATA 6Gb/s ports for versatile storage options. Connectivity is fast and reliable, thanks to Realtek 2.5Gb Ethernet with ASUS LANGuard protection. The rear panel features six USB ports, including a high-speed USB 20Gbps Type-C, while the front panel provides seven additional USB ports for seamless connectivity. Audio is equally impressive, with Realtek 7.1 Surround Sound, audio shielding, and premium components ensuring crystal-clear sound. ASUS exclusive features like Q-Design simplify installation, while 5X Protection III safeguards long-term stability, and a flexible thermal solution with M.2 heatsinks and VRM cooling keeps everything running smoothly. The Asus PRIME B860-PLUS-CSM ATX Motherboard integrates with ASUS Armoury Crate for system management and offers comprehensive BIOS utilities for easy updates and configuration. With a pre-mounted I/O shield and compatibility with Windows 11 and Windows 10 64-bit, the Asus PRIME B860-PLUS-CSM stands out as a dependable and feature-rich choice in the world of Asus Motherboards. Whether you're a gamer, content creator, or PC enthusiast, the Asus PRIME B860-PLUS-CSM Motherboard delivers the performance and reliability you need.Buy Asus PRIME B860-PLUS-CSM LGA 1851 ATX Motherboard from Star TechIn Bangladesh, you can get original Asus PRIME B860-PLUS-CSM LGA 1851 ATX Motherboard From Star Tech. We have a large collection of latest Asus Motherboard to Purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Asus PRIME B860-PLUS-CSM LGA 1851 ATX Motherboard comes with a 3-years Warranty.
