Product Description

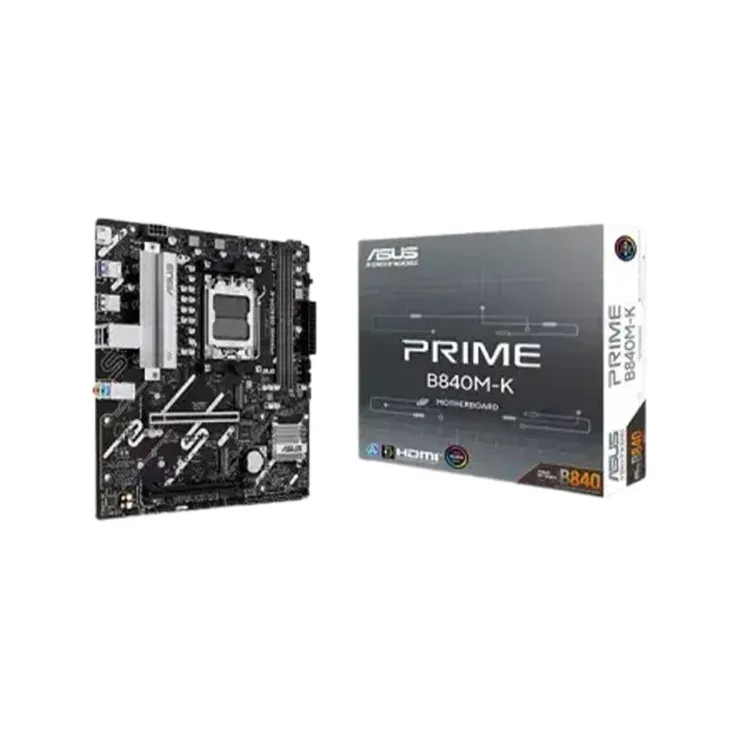

Engineered by ASUS, this motherboard is designed for **AM5** socket processors, featuring a **micro-ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **20,900 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-01432
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
1 x Realtek 2.5Gb EthernetASUS LANGuard
USB
Rear USB (Total 6 ports)4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 5Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsUSB Type-C power delivery output: max. 5V/3A.
BIOS
32MB (256Mb) Flash ROM, UEFI AMI BIOS
Raid
AMD RAIDXpert2 TechnologyRyzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layersA chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Slots
AMD Ryzen 9000 & 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD Ryzen 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)AMD B840 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)
Memory
2 x DIMM slots, max. 128GB, DDR5Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO)ASUS Enhanced Memory Profile (AEMP)* Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Results may vary according to system components.* XMP/EXPO/AEMP Profiles: Rated memory module speeds require a BIOS performance profile setting. Results may vary according to system components and can be impacted when four DIMM slots are used.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Chipset
AMD B840 Chipset
Graphics
1 x HDMI portAvailable only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.Supports 4K@60Hz as specified in HDMI 2.1.
Warranty
3-Year
Accessories
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O shield1 x Screw package for M.2 SSDDocumentation1 x Quick start guide
Form Factor
micro-ATX Form Factor9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Other Features
ManageabilityWOL by PME, PXE
Operating System
Windows 11, Windows 10 64-bit
Special Features
ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage protection- SafeSlot Core+- Stainless-steel back I/OASUS Q-Design- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- VRM heatsink designAura Sync- Addressable RGB Gen 2 headers
Software Features
ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+ASUS DriverHub- ASUS AI Advisor- ASUS CPU-Z- TurboV Core- Norton 360 Deluxe (60 Days Free Trial)- WinRAR (40 Days Free Trial)Adobe Creative Cloud (Free Trial)UEFI BIOSAI Cache BoostASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyFor more software features, please visit the asus support site or refer to www.asus.com/support for additional information.For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)AMD Ryzen 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)AMD B840 Chipset4 x SATA 6Gb/s portsSpecifications vary by CPU types.
External I/O Ports
4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x HDMI port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks
Internal I/O Ports
Fan and Cooling Related1 x 4-pin CPU Fan header3 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable RGB Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front Panel System header
