Product Description

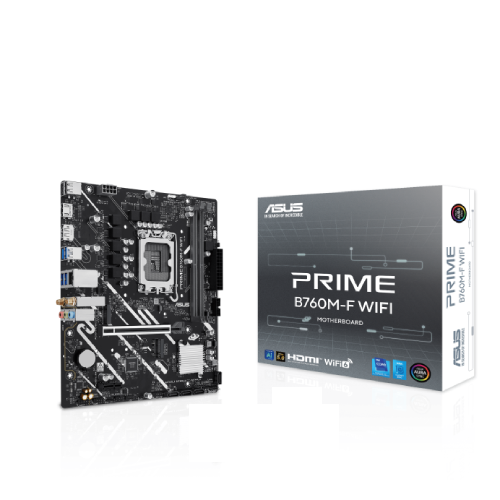

ASUS PRIME B760M-F WIFI mATX Motherboard
Upgrade Your Build with Unparalleled Performance
Designed specifically for modern PC builders, the ASUS PRIME B760M-F WIFI mATX Motherboard offers an unbeatable blend of next-gen performance, efficient connectivity, and versatile expansion in a compact micro-ATX form factor. Engineered for both mainstream users and performance enthusiasts, this motherboard is the perfect choice for those seeking to unlock their system's full potential.
Key Features at a Glance:
- Supports Intel Core 14th, 13th, and 12th Gen processors, along with Pentium Gold and Celeron CPUs via the LGA1700 socket
- Up to 96GB of DDR5 memory across two DIMM slots, supporting speeds up to DDR5-8000 (OC)
- Two PCIe 4.0 x4 M.2 slots for ultra-fast NVMe SSDs and four SATA 6Gb/s ports for traditional drives
- One PCIe 5.0 x16 slot for high-end graphics cards and one PCIe 4.0 x1 slot for additional peripherals
- Wi-Fi 6, Realtek 1Gb Ethernet, and a rich array of USB ports, including four USB 5Gbps ports and two USB 2.0 ports
ASUS Exclusive Technologies:
Experience the power of ASUS's proprietary technologies, designed to enhance your system's performance and reliability.
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core, and Stainless-steel back I/O for robust power delivery and protection.
Aura Sync: Personalize your build with synchronized RGB lighting effects through two Addressable Gen 2 headers.
Fan Xpert 2+: Intelligent cooling technology that provides optimal fan control for a quieter and more efficient system.
Part ID: #CAN-01024
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology
Asus PRIME B760M-F WIFI mATX Motherboard
|
In Stock | 17,400 | 4 hours ago | |
|
Skyland BD
Asus PRIME B760M-F WIFI mATX Motherboard
|
In Stock | 17,500 | 4 hours ago | |
|
Star Tech
Asus PRIME B760M-F WIFI mATX Motherboard
|
In Stock | 17,600 | 1 week ago | |
|
Global Brand PLC
ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard
|
In Stock | 17,700 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot
M.2 Socket
Total supports 2 x M.2 slots
Memory
Type
DDR5
Slots
2 x DIMM
Supported Memory
8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module
Maximum Memory
Max. 96GB
Graphics
Graphics
** Supports 4K@30Hz as specified in HDMI 1.4.
Connector & Ports
HDMI
1x HDMI port
Display Port (s)
1x DisplayPort
USB (s)
Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 1Gb Ethernet port
Wireless Communication module
Wi-Fi 6
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio
3 x Audio jacks
Internal I/O Ports
Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years warranty
Key Features
Model
PRIME B760M-F WIFI
Supported CPU
14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
2 x DIMM, Max. 96GB, DDR5
Graphics Output
1 x HDMI, 1 x DP, 3 x Audio
Features
1 x Realtek 1Gb Ethernet, WIFI 6
