Product Description

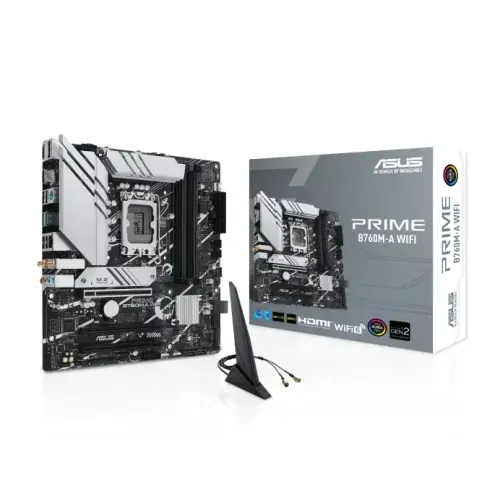

Unleash Your Gaming Potential with the ASUS PRIME B760M-A WIFI mATX Motherboard
Designed for gaming enthusiasts and professionals, the ASUS PRIME B760M-A WIFI mATX Motherboard offers unparalleled performance and connectivity for your next PC build. With support for Intel's latest 14th, 13th Gen, and 12th Gen processors, this motherboard is ready to power your rig with speed and efficiency.
Key Features and Benefits
- Supports Intel's latest 14th, 13th Gen, and 12th Gen processors for optimal performance and efficiency
- Ultrafast connectivity options, including PCIe 4.0, M.2 slots, Realtek 2.5Gb Ethernet, and Wi-Fi 6
- Comprehensive cooling solution with VRM heatsinks, M.2 heatsink, PCH heatsink, and Fan Xpert 2+ technology
- ASUS OptiMem II technology for improved memory overclocking capabilities and signal integrity
- Aura Sync RGB lighting for customizable aesthetics with onboard Addressable Gen 2 headers and an Aura RGB header
- High-speed connectivity options, including rear USB 3.2 Gen 2 and front USB 3.2 Gen 1 Type-C ports
Proprietary Technologies and Features
The ASUS PRIME B760M-A WIFI Motherboard features a range of innovative technologies, including:
ASUS 5X PROTECTION III
Enhanced power delivery, LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O for improved system reliability and stability.
ASUS Q-Design
Q-DIMM, Q-LED Core, and Q-Slot for improved memory compatibility and ease of use.
ASUS Thermal Solution
Comprehensive cooling solution with M.2 heatsink, VRM heatsink, and PCH heatsink for optimal system temperatures.
Part ID: #CAN-01295
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus PRIME B760M-A WIFI mATX Motherboard
|
In Stock | Call for Price | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
Max. 128GB
Graphics
Graphics
1 x DisplayPort 2 x HDMI ports
Connector & Ports
HDMI
2 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
PRIME B760M-A WIFI
Supported CPU
14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
4 x DDR5, Max. 128GB, 7200+(OC)
Graphics Output
1 x DisplayPort, 2 x HDMI
Features
Realtek 2.5Gb Ethernet, Wi-Fi 6
