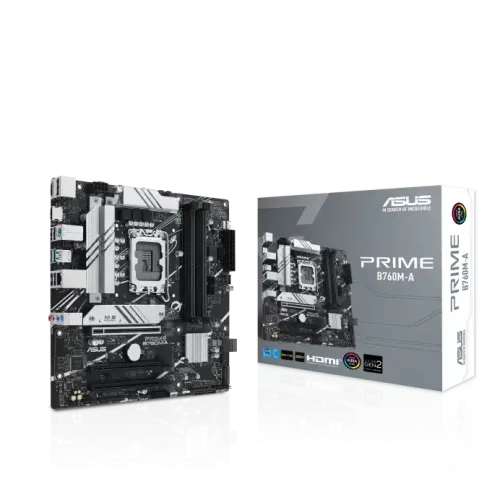

Asus PRIME B760M-A mATX Motherboard

Status
In Stock
5 stores
Lowest Out of Stock
Price Range Single price listing
Asus PRIME B760M-A mATX Motherboard

Product Description

Unlock Unmatched Performance with the ASUS PRIME B760M-A

Designed for gaming enthusiasts and content creators, the ASUS PRIME B760M-A is a powerful microATX motherboard that delivers exceptional performance, flexibility, and aesthetics. With its Intel B760 chipset and support for 14th, 13th, and 12th Gen Intel Core processors, this motherboard is the perfect foundation for building a high-end gaming PC or a content creation workstation.

Key Features and Performance Highlights

  • PCIe 4.0 compatibility for fast data transfer speeds and support for high-performance graphics cards and storage devices
  • Two M.2 slots for high-speed NVMe SSDs, providing faster data access and shorter load times
  • Realtek 2.5Gb Ethernet for quick and stable network access
  • Rear USB 3.2 Gen 2 ports and front USB 3.2 Gen 1 Type-C connector for high-speed peripheral connectivity
  • Support for up to 128GB of DDR5 memory and Intel Extreme Memory Profile (XMP) for optimized memory performance

Proprietary Technologies for Enhanced Performance and Aesthetics

The ASUS PRIME B760M-A features a range of proprietary technologies that enhance performance, cooling, and aesthetics. The motherboard includes ASUS OptiMem II, which optimizes memory performance and stability for improved system responsiveness, and Aura Sync RGB Lighting, which provides a touch of elegance to the system for consumers who value aesthetic customization. Additionally, the motherboard features hybrid fan headers and Fan Xpert 2+ technology, allowing customers to precisely tailor and manage the cooling of their system.

Part ID: #CAN-01300 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech Asus PRIME B760M-A mATX Motherboard
In Stock Call for Price 1 week ago
Skyland BD Asus PRIME B760M-A mATX Motherboard
In Stock 20,500 3 hours ago
Global Brand PLC ASUS PRIME B760M-A Intel 13th Gen mATX Motherboard
In Stock 20,700 4 hours ago
Computer Village Asus PRIME B760M-A mATX Motherboard
In Stock 20,800 4 hours ago
Sell Tech Asus PRIME B760M-A mATX Motherboard
Check Stock Call for Price 4 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
M.2 Socket Total supports 2 x M.2 slots

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory Max. 128GB

Graphics

Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)

Connector & Ports

HDMI 2 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Others

Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty 3 years warranty

Key Features

Model PRIME B760M-A
Supported CPU 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory 4 x DIMM, Max. 128GB, DDR5
Graphics Output 1 x DisplayPort, 2 x HDMI
Features 1 x Realtek 2.5Gb Ethernet
