Asus Prime B760m-A DDR5 Matx Motherboard

Motherboard • Brand: ASUS • Aggregating live prices from leading computer stores in Bangladesh.

Status
In Stock
2 listings tracked
Lowest Deal 20,300 Best Deal
Price Range 20,300 to 24,000 Save 18%
Asus Prime B760m-A DDR5 Matx Motherboard

Product Description

Engineered by ASUS, this motherboard is designed for **LGA1700** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **20,300 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-02191 Last Updated: 2 days ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology Asus Prime B760m-A DDR5 Matx Motherboard
In Stock 20,300 2 hours ago
Nexus Computer ASUS PRIME B760M-A DDR5 Motherboard
In Stock 24,000 2 hours ago

Historical Pricing Trend

Product Specifications

General Information

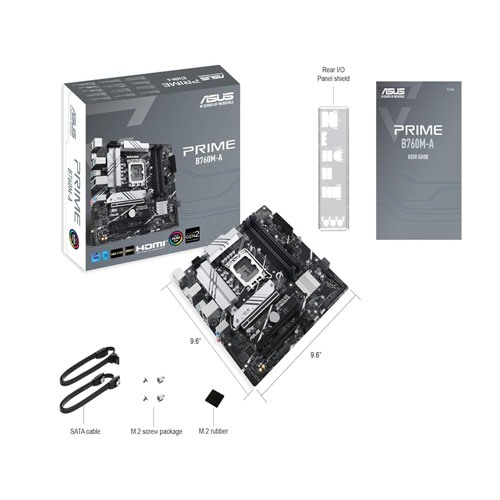

Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x User guide
Audio Feature Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Ethernet 1 x Realtek 2.5Gb Ethernet
Graphic 1 x DisplayPort** 2 x HDMITM ports*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMITM 2.1.
Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
Manageability WOL by PME, PXE
Memory 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Operating System Windows® 11, Windows® 10 64-bit
Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port

Main Features

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Chipset Intel® B760 Chipset
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Physical Specification

Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Warranty Information

Warrantty 3 Years
Part ID: #CAN-02191 Last Updated: 2 days ago
Asus Prime B760M-A DDR5 Micro-ATX motherboard delivers a powerful foundation for your computing needs, blending cutting-edge technology with a compact form factor. Designed to accommodate the latest Intel processors, this motherboard provides exceptional performance and reliability for both casual users and enthusiasts. Its support for DDR5 memory ensures faster data transfer rates, enhancing overall system responsiveness and multitasking capabilities. With PCIe 4.0 slots, M.2 support for high-speed SSDs, and USB 3.2 Gen 2 connectivity, this board offers impressive expansion options for graphics cards, storage, and peripherals, ideal for gaming or professional applications. Asus' comprehensive cooling solutions, like fan headers and temperature sensors, ensure optimal thermal management, contributing to system stability during demanding tasks. The motherboard's AI tuning capabilities streamline performance adjustments, simplifying overclocking for experienced users while offering automatic optimization for novices. Moreover, the Prime B760M-A incorporates ASUS-exclusive technologies like AI Noise-Canceling Microphone, providing crystal-clear audio for communication and content creation. Its sleek design and customizable RGB lighting headers add an aesthetic touch to your build, complementing various build themes. Overall, the Asus Prime B760M-A DDR5 Micro-ATX motherboard combines high-performance features, versatile connectivity, and intelligent design, making it a compelling choice for those seeking a reliable foundation for their PC build.Asus Prime B760m-a  Ddr5 Matx Motherboard price in BDIn industrial settings where reliability and performance are paramount, the Asus Prime B760M-A DDR5 Micro-ATX motherboard stands out as a robust and dependable choice. Engineered to support intensive tasks, this motherboard's compatibility with the latest Intel processors and DDR5 memory ensures efficient data processing and seamless operations. Its PCIe 4.0 slots and M.2 support cater to industrial applications that demand high-speed data access and storage. Moreover, the motherboard's advanced cooling mechanisms and AI-driven optimizations guarantee sustained performance under rigorous industrial workloads. Trust the Asus Prime B760M-A to power your industrial systems, offering resilience and functionality at an excellent price point.FeaturesDDR5 Memory Support: Provides faster data transfer rates and improved multitasking capabilities compared to previous generations.Intel Processor Compatibility: Supports the latest Intel processors, offering powerful performance for various computing needs.PCIe 4.0 Slots: High-speed PCIe 4.0 slots for graphics cards and other expansion cards, ensuring future-proofing for advanced peripherals.M.2 Support: Enables high-speed M.2 SSDs for rapid data access and storage solutions.USB 3.2 Gen 2 Connectivity: Offers fast data transfer speeds for compatible devices.Comprhensive Cooling Solutions: Equipped with fan headers, temperature sensors, and ASUS cooling technologies for efficient heat dissipation and system stability.AI Tuning Capabilities: Streamlines performance adjustments and overclocking with AI-driven optimizations for both experienced and novice users.AI Noise-Canceling Microphone: Enhances audio quality for clear communication and content creation.Customizable RGB Lighting Headers: Allows users to personalize their build with customizable RGB lighting options.Micro-ATX Form Factor: Compact design suitable for smaller builds without compromising on performance or features...
