Product Description
Unleash the Power of Your Build

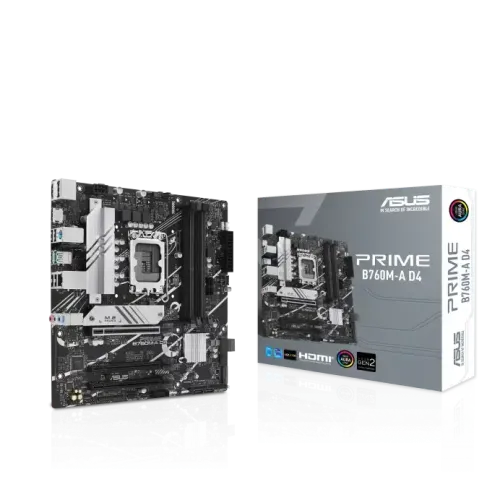

The ASUS PRIME B760M-A D4 mATX motherboard is designed for PC enthusiasts and professionals who demand high-performance computing. With support for Intel's latest 12th and 13th Gen processors and an LGA 1700 socket, this motherboard delivers unparalleled speed, efficiency, and connectivity options for seamless gaming, content creation, and workstation applications.
Key Features:
- Supports Intel's latest 12th and 13th Gen processors and LGA 1700 socket
- PCIe 4.0 support for ultrafast connectivity
- Two M.2 slots for lightning-fast storage and Realtek 2.5Gb Ethernet for high-speed networking
- Aura Sync RGB lighting with onboard Addressable Gen 2 headers and an Aura RGB header
- Comprehensive cooling solution with VRM heatsinks, M.2 heatsink, PCH heatsink, and hybrid fan headers
ASUS Proprietary Technologies
The ASUS PRIME B760M-A D4 motherboard features several proprietary technologies that enhance performance and user experience. These include:
OptiMem II: A technology that carefully routes traces and vias and optimizes ground layers to preserve signal integrity, resulting in improved memory overclocking potential.
ASUS 5X PROTECTION III: A suite of technologies that includes DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O to ensure reliable and stable operation.
Fan Xpert 2+: A technology that provides comprehensive fan control and monitoring to keep your system cool and quiet.
Part ID: #CAN-01297
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus PRIME B760M-A D4 mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Computer Village
Asus PRIME B760M-A D4 mATX Motherboard
|
In Stock | 19,590 | 4 hours ago | |
|
Nexus Computer
ASUS PRIME B760M-A D4 DDR4 Motherboard
|
In Stock | 20,600 | 4 hours ago | |
|
Binary Logic
Asus PRIME B760M-A D4 (LGA 1700) mATX motherboard
|
In Stock | 21,000 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
M.2 Socket
Total supports 2 x M.2 slots
Memory
Type
DDR4
Slots
4 x DIMM
Supported Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory
Max. 128GB
Graphics
Graphics
1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI
2 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 header support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port
LAN Port (s)
1 x Intel 2.5Gb Ethernet LANGuard
Supported Storage
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 years warranty
Key Features
Model
PRIME B760M-A D4
Supported CPU
13th Gen & 12th Gen Processors (LGA1700)
Supported Memory
4 x DIMM, Max. 128GB, DDR4
Graphics Output
1 x DisplayPort, 2 x HDMI
Features
1 x Realtek 2.5Gb Ethernet
Part ID: #CAN-01297
Last Updated: 1 month ago
