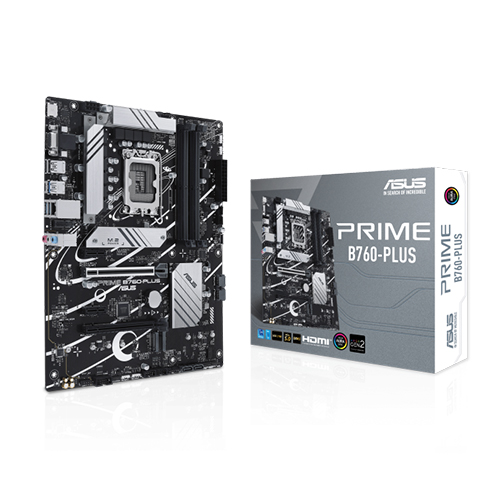

Asus Prime B760-PLUS DDR5 ATX Motherboard

Status
In Stock
2 stores
Lowest 21,700 BDT
Price Range 21,700 to 26,000 BDT Save 17%
Asus Prime B760-PLUS DDR5 ATX Motherboard

Product Description

Unlock Unmatched Performance with the ASUS Prime B760-PLUS DDR5 ATX Motherboard

The ASUS Prime B760-PLUS DDR5 ATX Motherboard is an exceptional choice for power users, content creators, and gamers who demand the best from their PC hardware. With its cutting-edge design and robust feature set, this motherboard is built to deliver exceptional performance, stunning visuals, and seamless connectivity.

Key Features and Benefits

Technical Highlights:

  • Supports Intel 13th Gen Core and 12th Gen Core processors with LGA1700 socket
  • 4 x DIMM slots with support for DDR5 memory up to 192GB
  • 1 x PCIe 5.0 x16 slot and 1 x PCIe 4.0 x16 slot for high-performance graphics and expansion cards
  • Realtek 2.5Gb Ethernet port for high-speed wired networking
  • ASUS Exclusive Software with Armoury Crate, Aura Creator, and more

Proprietary Technologies and Features

ASUS Exclusive Technologies:

The ASUS Prime B760-PLUS DDR5 ATX Motherboard features a range of proprietary technologies that enhance performance, cooling, and user experience. The motherboard's robust BIOS with a 128 Mb Flash ROM and UEFI AMI BIOS ensures smooth and stable system operation. Additionally, the Realtek 7.1 Surround Sound High Definition Audio CODEC provides immersive sound quality with support for up to 24-Bit/192 kHz playback.

The motherboard's audio shielding feature, premium audio capacitors, and dedicated audio PCB layers contribute to delivering crisp and clear sound. The Aura RGB header and addressable Gen 2 headers enable stunning RGB lighting effects, while the Fan Xpert 2+ software and OptiMem II technology provide advanced cooling and memory optimization features.

Part ID: #CAN-02192 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology Asus Prime B760-PLUS DDR5 ATX Motherboard
In Stock 21,700 3 hours ago
Buy Now
Nexus Computer Asus PRIME B760-PLUS DDR5 Motherboard
In Stock 26,000 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Information

Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide
Audio Features Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
CPU Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Ethernet 1 x Realtek 2.5Gb Ethernet
Graphic 1 x DisplayPort 1 x VGA port 1 x HDMI port
Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header
Manageability WOL by PME, PXE
Memory 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Operating System Windows 11, Windows 10 64-bit
Software Features ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
USB Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Wireless & Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe) Wi-Fi module is sold separately.

Main Features

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Physical Specification

Expansion Slots Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots

Warranty Information

Warranty 3 Years
Part ID: #CAN-02192 Last Updated: 1 month ago
