Product Description

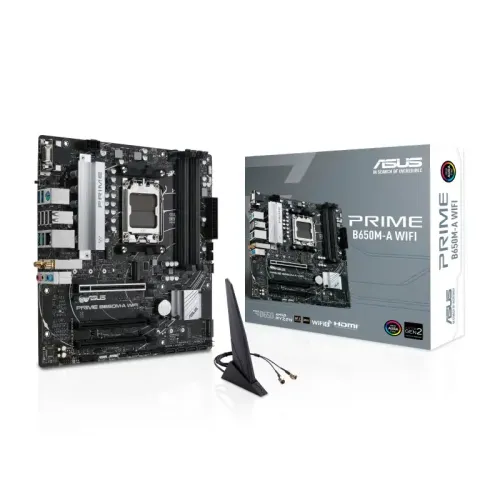

Unlock Your Potential with the ASUS PRIME B650M-A WIFI
The ASUS PRIME B650M-A WIFI is specifically designed for PC enthusiasts and power users who demand the best performance from their systems. With its robust power design, comprehensive cooling solutions, and intelligent tuning options, this motherboard is perfect for those looking to maximize their productivity and push their systems to new heights.
Key Features and BenefitsThe ASUS PRIME B650M-A WIFI motherboard boasts a range of impressive features, including:
- Support for AMD Ryzen 8000 & 7000 Series Processors - Unleash the full potential of your Ryzen CPU with this motherboard's expertly engineered design.
- 4x DDR5 RAM Slots - Enjoy up to 128GB of DDR5 memory for seamless multitasking and heavy workloads.
- Realtek 2.5Gb Ethernet and Wi-Fi 6 - Experience lightning-fast networking speeds and reliable connections.
- Multiple M.2 Slots - Take advantage of PCIe 5.0 data-transfer speeds for faster storage and peripherals.
- Comprehensive Cooling Controls - Configure your system's cooling settings via Fan Xpert 2+ software or the UEFI BIOS.
The ASUS PRIME B650M-A WIFI motherboard features several proprietary technologies that enhance its performance and usability. These include:
5X PROTECTION III - DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core+, and Stainless-Steel Back I/O all work together to provide a robust and reliable power delivery system.
Comprehensive Cooling Solutions - Multiple onboard heatsinks and hybrid fan headers ensure your system stays cool and stable under intense workloads.
6-Layer PCB Design - Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.
Part ID: #CAN-01194
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset
AMD B650 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode)
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory
128GB
Graphics
Graphics
1 x DisplayPort** 1 x VGA port 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
VGA (s)
1 x VGA port
USB (s)
Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio
Audio Connectors
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRIME B650M-A WIFI
Supported CPU
Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 128GB, 5600(OC)
Graphics Output
1x HDMI, 1x Display Port, 1 x VGA
Features
Realtek 2.5Gb Ethernet, Wi-Fi 6
Part ID: #CAN-01194
Last Updated: 1 month ago
