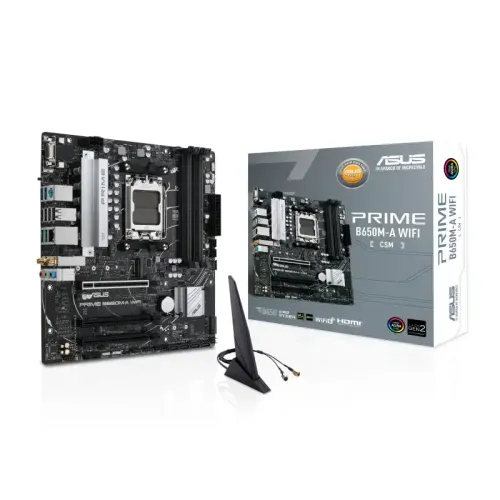

Asus PRIME B650M-A WIFI-CSM DDR5 AMD AM5 Micro-ATX Motherboard

Status
In Stock
2 stores
Lowest Out of Stock
Price Range Single price listing
Asus PRIME B650M-A WIFI-CSM DDR5 AMD AM5 Micro-ATX Motherboard

Product Description

Unleash Peak Performance with the ASUS PRIME B650M-A WIFI-CSM

The ASUS PRIME B650M-A WIFI-CSM is designed for enthusiasts and professionals seeking a powerful and reliable motherboard to match their AMD Ryzen 8000 & 7000-series processors. This motherboard is engineered to unleash the full potential of Ryzen CPUs, delivering exceptional performance, and seamless integration with your system.

Technical Highlights
  • Supports AMD Ryzen 8000 & 7000-series processors for Socket AM5
  • Up to 128GB DDR5 memory support with speeds of 5600(OC)
  • Realtek 2.5Gb Ethernet and Wi-Fi 6 for fast and reliable networking
  • Multiple M.2 slots with PCIe 5.0 support for blazing-fast storage
  • Robust power design and comprehensive cooling solutions for optimal performance
Advanced Technologies and Features

The ASUS PRIME B650M-A WIFI-CSM boasts a range of advanced technologies and features that enhance performance and stability. Key highlights include:

ASUS 5X PROTECTION III, which provides robust power delivery and protection for critical components. The motherboard also features a 6-layer PCB design for improved heat management and a robust VRM heatsink with thermal pads for better cooling performance.

Comprehensive Cooling Controls configurable via Fan Xpert 2+ software or the UEFI BIOS, ensuring optimal performance and stability under intense workloads. Additionally, the motherboard offers Realtek 2.5 Gb Ethernet for fast and reliable networking, and Wi-Fi 6 for seamless wireless connectivity.

With its robust design and advanced features, the ASUS PRIME B650M-A WIFI-CSM is the perfect choice for enthusiasts and professionals seeking a powerful and reliable motherboard to match their AMD Ryzen 8000 & 7000-series processors.

Part ID: #CAN-01196 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech Asus PRIME B650M-A WIFI-CSM DDR5 AMD AM5 Micro-ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
PC House Asus PRIME B650M-A WIFI-CSM DDR5 AMD AM5 Micro-ATX Motherboard
In Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset AMD B650 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode)

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory 128GB

Graphics

Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)

Others

Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model PRIME B650M-A WIFI-CSM
Supported CPU Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM 4x DDR5, up to 128GB, 5600(OC)
Graphics Output 1x HDMI, 1x Display Port, 1 x VGA
Features Realtek 2.5Gb Ethernet, Wi-Fi 6
Part ID: #CAN-01196 Last Updated: 1 month ago
