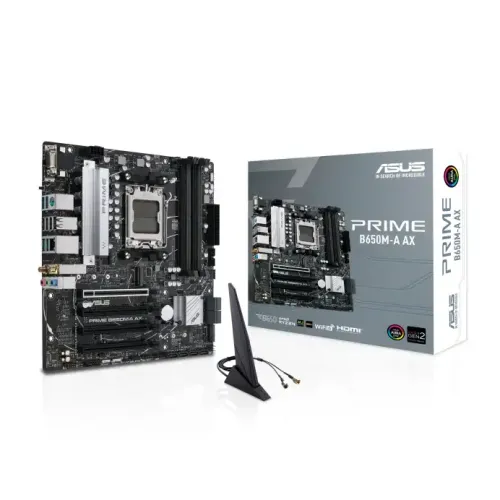

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard

Status
In Stock
3 stores
Lowest Out of Stock
Price Range Single price listing
Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard

Product Description

Unleash Your Power with the ASUS PRIME B650M-A AX DDR5 Motherboard

This motherboard is designed for serious enthusiasts and professionals seeking to unlock the full potential of their AMD Ryzen 8000 & 7000 series processors. With its robust power design, comprehensive cooling solutions, and intelligent tuning options, the ASUS PRIME B650M-A AX Motherboard is the perfect choice for those who demand the best performance and reliability.

Key Features

  • Supports AMD Ryzen 8000 & 7000 series processors for socket AM5
  • 4x DDR5 slots with speeds up to 5600(OC) and a maximum capacity of 128GB
  • Multiple onboard heatsinks and hybrid fan headers for improved cooling performance
  • Realtek 2.5Gb Ethernet and Wi-Fi 6 for fast and reliable networking
  • 2x M.2 slots with PCIe 5.0 and 4x SATA 6Gb/s ports for storage expansion

Advanced Technologies

The ASUS PRIME B650M-A AX Motherboard features several advanced technologies designed to optimize performance and reliability. The motherboard's 6-layer PCB design and comprehensive cooling controls, including Fan Xpert 2+ software, provide a stable and efficient platform for your system. Additionally, the VRM heatsink and thermal pads improve heat transfer from critical components, allowing for better overclocking headroom. With its robust power delivery and intelligent cooling solutions, this motherboard is perfect for those who demand the best performance and reliability.

Comprehensive Connectivity

The ASUS PRIME B650M-A AX Motherboard offers a wide range of connectivity options, including 1x HDMI, 1x DisplayPort, and 1x VGA port for graphics output. It also features 8x USB 3.2 Gen 2 ports, 2x USB 3.2 Gen 1 ports, and 4x USB 2.0 ports for peripherals, as well as a Realtek 2.5Gb Ethernet port for fast and reliable networking.

Part ID: #CAN-01193 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Creatus Computer Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard
In Stock Call for Price 4 hours ago
Buy Now
PC House Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard
In Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset AMD B650 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode)

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory 128GB

Graphics

Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1.

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 8 x SATA 6Gb/s ports** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** The SATA6G_E12/E34 ports cannot support RAID.
Audio Audio Connectors
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)

Others

Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model PRIME B650M-A AX
Supported CPU Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM 4x DDR5, up to 128GB, 5600(OC)
Graphics Output 1x HDMI, 1x Display Port, 1 x VGA
Features Realtek 2.5Gb Ethernet, Wi-Fi 6
Part ID: #CAN-01193 Last Updated: 1 month ago
