Product Description
Upgrade Your Gaming and Productivity Experience

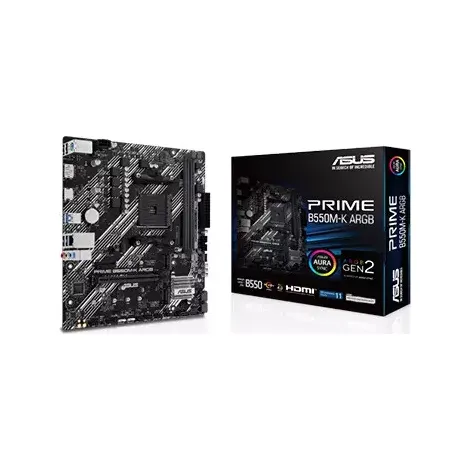

Designed for AMD Ryzen enthusiasts, the ASUS PRIME B550M-K ARGB motherboard delivers powerful performance, stability, and versatility for a wide range of applications. With its advanced cooling design, high-speed connectivity, and support for powerful Ryzen CPUs, it's an excellent choice for users seeking a feature-rich foundation for a modern, future-ready PC build.
Key Features and Benefits
- Supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series & 3000 Series Desktop Processors for seamless multitasking and faster data handling.
- Dual-channel DDR4 memory support up to 64GB, speeds up to 5100MHz (OC) for enhanced performance and stability.
- 2 x M.2 slots and 4 x SATA 6Gb/s ports for ultra-fast storage options, including PCIe 4.0/3.0 x4 and SATA modes.
- Integrated HDMI 2.1 and DisplayPort 1.4 supporting 4K@60Hz output for stunning visuals and smooth frame rates.
- Realtek 7.1 Surround Sound HD Audio CODEC with premium audio capacitors for immersive audio experiences.
Advanced Technologies and Features
The ASUS PRIME B550M-K ARGB motherboard boasts several proprietary technologies that enhance its performance and reliability. **ASUS 5X PROTECTION III** ensures long-term durability with features like SafeSlot Core, LANGuard, and Overvoltage Protection. Additionally, **Aura Sync RGB lighting** allows full customization via Armoury Crate and Aura Creator, letting users personalize their setups with synchronized lighting effects.
Part ID: #CAN-01437
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-bit/192 kHz playback
Slots
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD Ryzen 5000 G-Series/ 4000G-Series Desktop Processors1 x PCIe 3.0 x16 slot (supports x16 mode)AMD B550 Chipset1 x PCIe 3.0 x1 slot* Please check the PCIe
Memory
2 x DIMM slots, Max. 64GB, DDR4 5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory*Dual Channel Memory Architecture* ECC memory (ECC mode) support varies by CPU.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Chipset
AMD B550 Chipset
Graphics
1 x DisplayPort1 x HDMI portGraphics specifications may vary between CPU types. Please refer to AMD CPU specifications.Supports max. 4K@60Hz as specified in DisplayPort 1.4.Supports 4K@60Hz as specified in HDMI 2.1.
Warranty
3 years
Accessories
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x Screw package for M.2 SSDDocumentation1 x User guide
Form Factor
micro-ATX Form Factor9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Audio codecs
- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module The front panel is required to support 7.1Surround Sound audio output.
Supported CPU
AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Operating System
Windows 11, Windows 10 64-bit
Special Features
ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Aluminum heatsink designAura Sync- Addressable Gen 2 headers
Software Features
ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+- EZ updateASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 5000 Series/ 3000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)AMD B550 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
External I/O Ports
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port
Internal I/O Ports
Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel header
