Status
In Stock
4 listings tracked
Lowest Deal
12,199
Best Deal
Price Range
Single price listing
Product Description

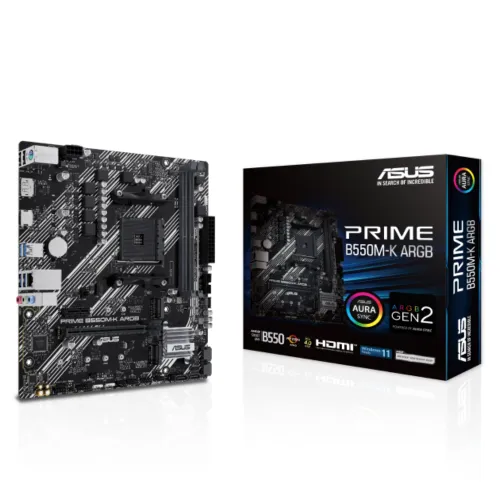

Build Your Dream PC with the ASUS PRIME B550M-K ARGB
The ASUS PRIME B550M-K ARGB motherboard is an excellent choice for enthusiasts and gamers seeking a reliable and high-performance platform for their AMD system. With its robust features and capabilities, this motherboard provides the perfect blend of efficiency, connectivity, and longevity for your next-generation PC build.
Key Features and Benefits
- Supports AMD Ryzen 5000/4000/3000 Series Processors for Socket AM4
- Two DDR4 DIMM slots with up to 64GB memory capacity and speeds of up to 5100MHz (OC)
- Two M.2 slots and four SATA 6Gb/s ports for diverse storage options
- Realtek 1Gb Ethernet and Realtek 7.1 Surround Sound High Definition Audio CODEC
- ASUS 5X PROTECTION III, Q-Design, Aura Sync ARGB support, and AI Suite 3
Advanced ASUS Technologies
The ASUS PRIME B550M-K ARGB motherboard features a range of innovative technologies that enhance performance, stability, and convenience. These include:
DIGI+ VRM for efficient power delivery, LAnGuard for robust networking, and SafeSlot Core for secure expansion card installation. Additionally, the motherboard boasts Aura Sync support for customizable RGB lighting and AI Suite 3 for intelligent system monitoring and optimization.
Connectivity and Expansion
The ASUS PRIME B550M-K ARGB motherboard offers a comprehensive range of connectivity options, including:
USB 3.2 Gen 1, USB 2.0, DisplayPort, HDMI, Ethernet, and audio connectors on the back panel. Internal interfaces include CPU and chassis fan headers, addressable Gen 2 headers, M.2 slots, SATA ports, and more.
Part ID: #CAN-00984
Last Updated: 3 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Asus PRIME B550M-K ARGB AMD AM4 mATX Motherboard
|
In Stock | 12,199 | 2 hours ago | |
|
Netstar
Asus PRIME B550M-K ARGB AMD AM4 mATX Motherboard
|
In Stock | 12,199 | 1 week ago | |
|
Netstar
Asus PRIME B550M-K ARGB AMD AM4 mATX Motherboard
|
In Stock | 12,199 | 2 hours ago | |
|
Global Brand PLC
ASUS PRIME B550M-K ARGB AMD Ryzen AM4 micro-ATX Motherboard
|
In Stock | 12,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
AMD B550 Chipset
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket
2 x M.2 slots
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory Dual Channel Memory Architecture ECC memory (ECC mode) support varies by CPU.
Maximum Memory
64GB
Graphics
Graphics
1 x DisplayPort 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)
1 x Realtek 1Gb Ethernet
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
PRIME B550M-K ARGB
Supported CPU
Ryzen 5000/4000/3000 Series Processors for Socket AM4
Supported RAM
2 x DDR4 DIMM slots, Max. 64GB, Up to 5100 Mhz (OC)
Graphics Output
1 x DisplayPort, 1 x HDMI
Features
2 x M.2 slots, Realtek 1Gb Ethernet
Part ID: #CAN-00984
Last Updated: 3 hours ago
