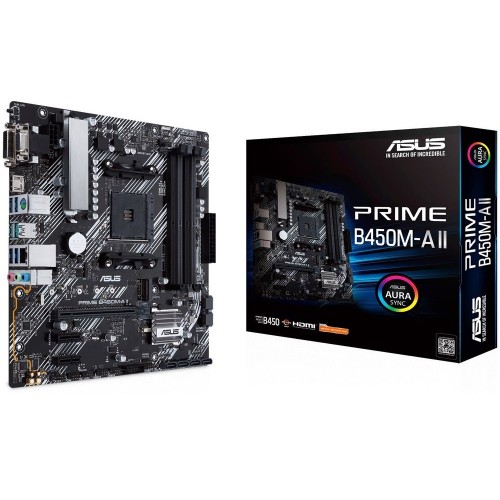

Asus Prime B450M-A II AM4 Micro-ATX AMD Motherboard

Product Description

Build Your Dream PC with the ASUS Prime B450M-A II Motherboard

The ASUS Prime B450M-A II Micro-ATX motherboard is perfect for builders who want a solid foundation for their first PC or a reliable platform for upgrading their existing system. With its robust features, intuitive controls, and premium hardware, this motherboard delivers a seamless computing experience that's tailored to your needs.

Key Features and Performance Benefits

The ASUS Prime B450M-A II motherboard boasts several key features that make it an excellent choice for PC builders:

  • Supports AMD Ryzen processors with AM4 socket for 3rd, 2nd, and 1st Gen AMD Ryzen, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics, and Athlon with Radeon Vega Graphics processors
  • Dual Channel DDR4 memory technology with 4 x DIMM slots and up to 128 GB of maximum memory
  • 1 x PCIe 3.0 x16 slot, 2 x PCIe 2.0 x1 slots, and 1 x M.2 Socket 3 with M key for storage devices
  • Integrated graphics with 1 x D-Sub, 1 x DVI-D, and 1 x HDMI 2.0b ports
  • Realtek ALC887/897 7.1-Channel High Definition Audio CODEC with premium Japanese audio capacitors
Advanced Technologies and Features

The ASUS Prime B450M-A II motherboard incorporates several advanced technologies and features that enhance its performance and user experience:

Comprehensive Cooling Controls - The motherboard features hybrid fan headers, an array of onboard heatsinks, and a VRM heatsink with an underneath thermal pad to ensure stable operation under intense workloads.

Immersive Onboard Audio - The motherboard's audio design separates analog and digital signal domains, significantly reducing multi-lateral interference and ensuring minimal crosstalk between audio paths. Premium parts provide an immersive sound signature with exceptional fidelity.

Part ID: #CAN-01255 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech Asus Prime B450M-A II AM4 Micro-ATX AMD Motherboard
In Stock Call for Price 1 week ago
TechLand BD Asus Prime B450M-A II AM4 Micro-ATX AMD Motherboard
In Stock 12,000 4 hours ago
Creatus Computer Asus Prime B450M-A II AM4 mATX AMD Motherboard
In Stock 12,000 4 hours ago
PC House Asus Prime B450M-A II AM4 Micro-ATX AMD Motherboard
In Stock 12,590 4 hours ago
Computer Village Asus Prime B450M-A II AM4 Micro-ATX AMD Motherboard
In Stock 12,600 4 hours ago
Sell Tech Asus Prime B450M-A II AM4 Micro-ATX AMD Motherboard
Check Stock Call for Price 4 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD AM4 Socket for 3rd/ 2nd/ 1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors
Chipset AMD B450
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )

Expansion Slots

PCI 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 2 x PCIe 2.0 x1
M.2 Socket Total supports 1 x M.2 slot(s):> 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIE 3.0 x 4 mode) Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA mode)

Memory

Type Dual Channel DDR4 Memory Technology
Slots 4 x DIMM
Supported Memory 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Memory 128 GB

Graphics

Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 1 x D-Sub 1 x DVI-D 1 x HDMI 2.0b

Connector & Ports

HDMI 1 x HDMI 2.0b
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI-D
USB (s) Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s) Realtek RTL8111H ASUS LANGuard
Supported Storage Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Audio Realtek ALC887/897 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector 1 x RGB Header
TPM (Trusted Platform Module ) 1 x SPI TPM header

Warranty Information

Manufacturing Warranty 03 years

Key Features

Model Asus Prime B450M-A II
Part ID: #CAN-01255 Last Updated: 1 month ago
