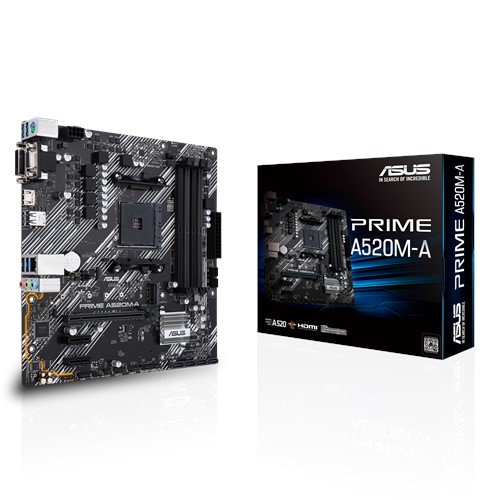

Asus Prime A520M-A Micro ATX AM4 Motherboard

Status
In Stock
5 stores
Lowest 11,000 BDT
Price Range Single price listing
Asus Prime A520M-A Micro ATX AM4 Motherboard

Product Description

Unleash Your PC's Potential with the ASUS Prime A520M-A Motherboard

The ASUS Prime A520M-A Micro ATX AM4 motherboard is designed for PC enthusiasts and DIY builders seeking a robust and feature-rich platform for their 3rd Generation AMD Ryzen systems. With its comprehensive cooling solutions, intelligent tuning options, and robust power design, this motherboard offers the perfect blend of performance and flexibility.

Key Features and Benefits

  • Supports AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Comprehensive cooling controls with hybrid fan headers and configurable via Fan Xpert 2+ software
  • Robust power design with 5X PROTECTION III and DIGI+ VRM
  • Fast storage options with M.2 slot supporting up to 22110 and data-transfer speeds of up to 32 Gbps
  • Advanced UEFI BIOS with EZ mode and Advanced mode for intuitive system configuration and tuning

Proprietary Technologies for Enhanced Performance

The ASUS Prime A520M-A motherboard boasts a range of proprietary technologies designed to deliver exceptional performance and stability. These include ASUS 5X PROTECTION III, which provides comprehensive protection against power surges, overvoltage, and overheating. Additionally, the motherboard features DIGI+ VRM, a robust power delivery system that ensures stable and efficient power delivery to the CPU. Furthermore, the motherboard's advanced cooling system, featuring hybrid fan headers and configurable via Fan Xpert 2+ software, ensures that your system stays cool and stable even under intense workloads.

Part ID: #CAN-01214 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech Asus Prime A520M-A Micro ATX AM4 Motherboard
In Stock Call for Price 1 week ago
Buy Now
Computer Village Asus Prime A520M-A Micro ATX AM4 Motherboard
In Stock 11,000 4 hours ago
Buy Now
Creatus Computer Asus Prime A520M-A Micro ATX AM4 Motherboard
Check Stock Call for Price 4 hours ago
Buy Now
Nexus Computer Asus PRIME A520M-A DDR4 AMD ATX AM4 Motherboard
Check Stock Call for Price 4 hours ago
Buy Now
PC House Asus Prime A520M-A Micro ATX AM4 Motherboard
Check Stock 8,000 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD A520
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Expansion Slots

PCI 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1
M.2 Socket 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

Memory

Type Dual Channel Memory Architecture
Slots 4 x DIMM slots
Supported Memory 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/2666/ 2400/ 2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU
Maximum Memory 128GB

Graphics

Graphics Integrated Graphics in the 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)

Connector & Ports

HDMI 1 x HDMI 2.1(4K@60HZ)
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI-D
USB (s) Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s) Realtek RTL8111H 1Gb Ethernet ASUS LANGuard
Supported Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
TPM (Trusted Platform Module ) 1 x SPI TPM header

Others

Special Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - Lighting Control - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design

Warranty Information

Manufacturing Warranty 03 Years Warranty

Key Features

Model Asus Prime A520M-A
Part ID: #CAN-01214 Last Updated: 1 month ago
