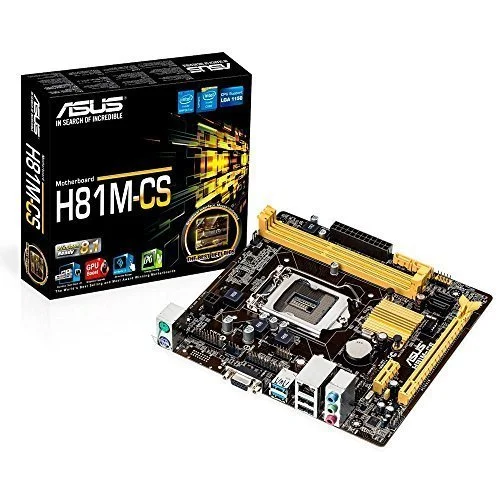

Upgrade Your PC with the ASUS H81M-CS 4th Gen Intel Motherboard

Designed for enthusiasts and builders, the ASUS H81M-CS 4th Gen Intel Motherboard offers an exceptional blend of performance, features, and value. Perfect for building a powerful PC for gaming, content creation, or other demanding tasks, this motherboard provides a solid foundation for your next project.

Key Features and Performance Highlights

Supports Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors
Integrated Realtek ALC887 8-Channel High Definition Audio CODEC with Jack-detection and Front Panel Jack-retasking
2 x USB 3.1 Gen 1 ports and 6 x USB 2.0 ports for fast connectivity and peripheral support
1 x PCIe 2.0 x16 and 1 x PCIe 2.0 x1 slot for graphics and expansion card support
Supports up to 16GB of DDR3 memory with Intel Extreme Memory Profile (XMP) and Dual Channel Memory Architecture

Exclusive ASUS Technologies and Performance Enhancements

ASUS Exclusive Features

The ASUS H81M-CS motherboard comes with a range of exclusive features that enhance performance, convenience, and overall user experience. These include:

ASUS UEFI BIOS EZ Mode with friendly graphics user interface
GPU Boost for optimized graphics performance
AI Suite 3 for advanced system monitoring and control
Anti-Surge protection for safe system operation

With its powerful performance, robust feature set, and innovative ASUS technologies, the H81M-CS motherboard is an ideal choice for builders and enthusiasts looking to create a high-performance PC.

Part ID: #CAN-01938 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
Computer Village ASUS H81M-CS 4th Gen Intel Motherboard	In Stock	8,300	4 hours ago	Buy Now
Creatus Computer ASUS H81M-CS 4th Gen Intel Motherboard	Check Stock	Call for Price	4 hours ago	Buy Now
Nexus Computer Asus H81M-CS DDR3 4th Gen Intel Motherboard	Check Stock	Call for Price	4 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 - The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset Intel H81

BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Form Factor uATX Form Factor 7.5 inch x 7.0 inch ( 19 cm x 17.7 cm )

Audio Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking

Expansion Slots

PCI 1 x PCIe 2.0 x16 1 x PCIe 2.0 x1

Memory

Type DDR3

Slots 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture

Supported Memory Supports Intel Extreme Memory Profile (XMP) - Hyper DIMM support is subject to the physical characteristics of individual CPUs. - Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Graphics

Graphics Integrated Graphics Processor - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

Max Shared Memory 1024 MB

Connector & Ports

USB (s) 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) - 2 x USB 3.1 Gen 1 (blue) - USB 2.0 - USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

LAN Port (s) Realtek 8111GR, 1 x Gigabit LAN Controller(s) - 1 x LAN (RJ45) port(s)

Supported Storage 2 x SATA 6Gb/s port(s), yellow 2 x SATA 3Gb/s port(s), dark brown, Supports Intel Rapid Start Technology, Intel Smart Connect Technology

Audio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking - 3 x Audio jack(s) - 1 x Front panel audio connector(s) (AAFP)

Internal I/O Ports USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) TPM header LPT header COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) CPU Fan connector(s) (1 x 4 -pin) Chassis Fan connector(s) (1 x 4 -pin) 24-pin EATX Power connector(s) 4-pin ATX 12V Power connector(s) Front panel connector(s) Front panel audio connector(s) (AAFP) Internal speaker connector(s) Chassis Intrusion connector(s)

D-Sub (s) 1 x D-Sub

Warranty Information

Manufacturing Warranty 03 Years Warranty

Others

Special Features ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Disk Unlocker ASUS Quiet Thermal Solution : - Fan Xpert EZ DIY : - CrashFree BIOS 3 - EZ Flash 2 Q-Design : - Q-Slot - Q-DIMM

Part ID: #CAN-01938 Last Updated: 1 month ago
