Product Description
Engineered by ASUS, this motherboard is supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **17,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01799
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
CPU
Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
USB
Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Model

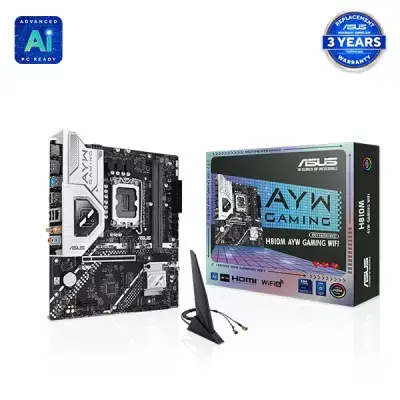

H810M AYW GAMING WIFI
Memory
2x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual-channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Chipset
Intel H810 Chipset
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet port* ASUS LANGuard *With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Graphics
1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphics cards' resolution.
Warranty
3-Year Brand Warranty (Condition applied)
Accessories
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Form Factor
micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
Key Feature 1
Chipset: Intel H810 Chipset for Core Ultra Processors (Series 2)
Key Feature 2
Socket: Intel Socket LGA1851
Key Feature 3
Memory: 2 x DIMM slots, max. 128GB, DDR5
Key Feature 4
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Key Feature 5
Features: Advanced AI PC-ready, WiFi 6, ASUS Fan Xpert 2+, EZ PC DIY, Aura Sync
Manageability
WOL by PME, PXE
Expansion Slots
Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Software Features
ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 1Gb Ethernet port 3 x Audio jacks
Wireless & Bluetooth
Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* * The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Internal I/O Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Part ID: #CAN-01799
Last Updated: 2 days ago
The ASUS H810M AYW GAMING WIFI is a feature-rich micro-ATX (mATX) motherboard engineered for modern Intel builds, especially using the latest Intel® Core™ Ultra Series 2 processors on the new LGA1851 socket, giving you up-to-date performance and AI-ready capabilities in a compact form factor. Built around the Intel® H810 chipset, it supports DDR5 memory up to 128 GB at high speeds (up to 6400 MT/s) with dual-channel architecture, plus ASUS-exclusive memory tuning tools for optimized performance. A range of connectivity options includes integrated Wi-Fi 6 and Bluetooth 5.3, wired Intel 1 Gb Ethernet with ASUS LANGuard, multiple USB ports including USB 10 Gbps Type-A and USB 5 Gbps Type-C, and both DisplayPort and HDMI outputs supporting 4K@60 Hz video. For storage and expansion it offers two M.2 slots (PCIe 4.0 x4 and x2) and four SATA 6 Gb/s ports, plus one PCIe 4.0 x16 slot for a discrete GPU and a PCIe 4.0 x1 slot for other expansion cards. Enhanced durability and convenience come from ASUS design elements such as EZ PC DIY features, ASUS fan controls, and Aura Sync RGB support, helping you build a balanced gaming or productivity PC with strong performance, modern wireless support, and versatile I/O.
