Product Description

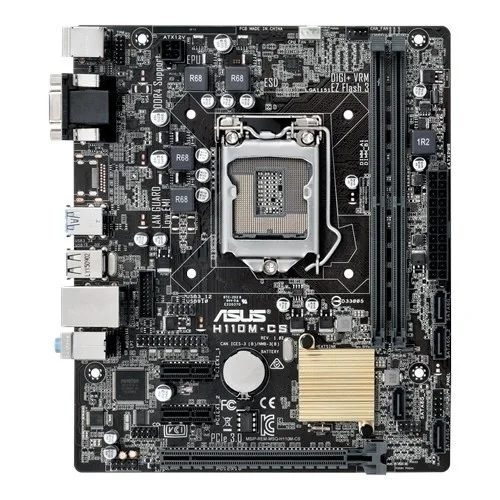

Unlock Your Creativity with the ASUS H110M-CS Motherboard
The ASUS H110M-CS motherboard is designed for gamers, content creators, and enthusiasts who demand high-performance computing and exceptional stability. With its support for 7th and 6th Generation Intel Core processors, this motherboard offers a powerful foundation for building a reliable and efficient system.
Key Features and Benefits- Support for Intel 14nm CPU: Enjoy the benefits of Intel's latest architecture with improved performance and reduced power consumption.
- PCIe 3.0 and 2.0 Support: Expand your system with high-speed storage and peripherals using PCIe 3.0 and 2.0 slots.
- DDR4 Memory Support: Take advantage of dual-channel DDR4 memory for increased bandwidth and lower latency.
- Realtek RTL8111H LAN: Stay connected with fast and reliable Ethernet connectivity.
- ASUS EZ Flash 3 and CrashFree BIOS 3: Easily update your BIOS and recover from crashes with ASUS's advanced firmware tools.
The ASUS H110M-CS motherboard incorporates several advanced technologies and features that enhance system performance, stability, and user experience. Some of these key features include:
- ASUS DRAM SPD Memory Information: Get detailed information about your system's memory configuration and performance.
- Audio Shielding and Dedicated Audio PCB Layers: Enjoy immersive and high-quality audio with ASUS's advanced audio shielding and dedicated PCB layers.
- Intel Rapid Storage Technology: Take advantage of fast storage and data transfer with Intel's advanced storage technology.
- Multi-language BIOS and EZ Flash 3: Easily update your BIOS and recover from crashes with ASUS's advanced firmware tools.
The ASUS H110M-CS motherboard is backed by a 3-year limited warranty, providing you with peace of mind and protection for your investment.
Part ID: #CAN-01937
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
Asus H110M-CS 7th/6th Gen micro-ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Sell Tech
Asus H110M-CS 7th/6th Gen micro-ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Nexus Computer
Asus H110M-CS 7th/6th Gen micro-ATX Motherboard
|
Check Stock | Call for Price | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset
Intel® H110
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor
uATX Form Factor 8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm )
Expansion Slots
PCI
1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1
Memory
Type
DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Slots
2 x DIMM
Supported Memory
Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Maximum Mamory
The maximum memory frequency supported varies by processor
Graphics
Graphics
VGA output support : RGB port - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory
1024 MB
Connector & Ports
USB (s)
Intel® H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)
LAN Port (s)
Realtek® RTL8111H
Supported Storage
Intel® H110 Chipset : 4 x SATA 6Gb/s port(s), gray, Intel® Rapid Storage Technology supports*2
Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Internal I/O Ports
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x 14-1 pin TPM connector 1 x Chassis intrusion header
Warranty Information
Manufacturing Warranty
03 Years
Part ID: #CAN-01937
Last Updated: 1 month ago
