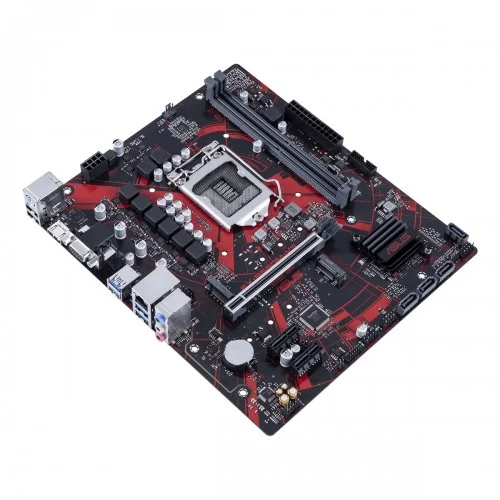

Upgrade Your Gaming Experience with the ASUS Expedition EX-B560M-V5
Designed for ambitious gamers and PC enthusiasts, the ASUS Expedition EX-B560M-V5 motherboard offers a robust and future-proof platform for Intel 10th and 11th Gen CPUs. With its impressive array of features and premium components, this motherboard is perfect for those seeking to build a high-performance gaming PC or content creation workstation.
Key Features and Benefits
- Supports Intel 10th and 11th Gen CPUs, up to 125W, with Turbo Boost 2.0 and Turbo Boost Max 3.0 technology
- Dual Channel Memory Architecture with support for up to 64GB of DDR4 memory, including 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC) MHz
- 2 x PCIe 3.0 x16 slots and 2 x PCIe 3.0 x1 slots for versatile expansion options
- 4 x SATA 6Gb/s ports and 2 x M.2 slots for ample storage and connectivity
- Realtek ALC887 7.1-Channel High Definition Audio CODEC for immersive audio experiences
ASUS Proprietary Technologies
The ASUS Expedition EX-B560M-V5 motherboard features several proprietary technologies that enhance its performance, durability, and gaming capabilities. These include:
- ASUS 5X Protection III, which provides comprehensive protection against power surges, overvoltage, and other threats
- ASUS SafeSlot Core+, which prevents graphics card damage and ensures reliable performance
- ASUS DIGI+ VRM, which provides premium components for better power efficiency and reduced noise
- ASUS iCafe Labs Certified, which ensures top-notch performance in demanding gaming environments
Part ID: #CAN-02142
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Sell Tech
ASUS Expedition EX-B560M-V5 Intel 10th and 11th Gen M-ATX Motherboard
|
Check Stock | Call for Price | 5 hours ago | |
|
Nexus Computer
ASUS Expedition EX-B560M-V5 Intel 10th & 11th Gen M-ATX Motherboard
|
Check Stock | 10,100 | 4 hours ago | |
|
Binary Logic
ASUS Expedition EX-B560M-V5 Intel 10th & 11th Gen M-ATX...
|
Check Stock | 10,600 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Motherboard Basic Info
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
Motherboard Basic Information
Supported CPU
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Supports CPU up to 125 W
Chipset
Intel B460
Expansion Slots
PCI
Intel 10th Gen Processors 1 x PCIe 3.0/2.0 x16 Intel B460 Chipset 2 x PCIe 3.0 x1
M.2 Socket
M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Memory Specifications
Type
Dual Channel Memory Architecture
Motherboard Memory Info
Supported Memory
5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory* Supports Intel Extreme Memory Profile (XMP) *10th Gen Intel Core i7/i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory
64GB
Motherboard Graphics Info
Graphics
1 x D-Sub 1 x HDMI 1.4 / 2.0*** ** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Connector & Ports (MB)
HDMI
1 x HDMI 1.4 / 2.0
USB (s)
Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x COM Debug header 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
Supported Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Others
Special Features
ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS SafeSlot Core+ - Prevent graphics card damage - ASUS DIGI+ VRM: Premium components provide better power efficiency Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
Warranty Information
Manufacturing Warranty
3 Years
Part ID: #CAN-02142
Last Updated: 1 month ago
