Product Description

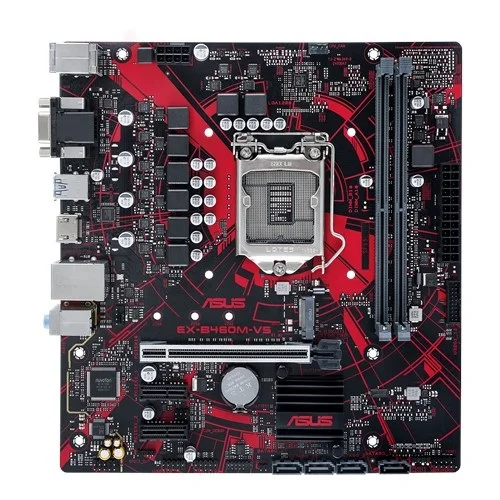

Engineered by ASUS, this motherboard is designed for **LGA1200** socket processors and featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. You can buy this component starting from **9,500 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-02131
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Motherboard Basic Info
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
Motherboard Basic Information
Supported CPU
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Supports CPU up to 125 W
Chipset
Intel B460
Expansion Slots
PCI
Intel 10th Gen Processors 1 x PCIe 3.0/2.0 x16 Intel B460 Chipset 2 x PCIe 3.0 x1
Motherboard Memory Info
Slots
2 x DDR4 DIMM
Supported Memory
2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 10th Gen Intel Corei9/ i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 natively Supports Intel Extreme Memory Profile (XMP) OptiMem
Maximum Memory
64 GB
Motherboard Graphics Info
Graphics
Integrated Graphics Processor Multi-VGA output support: HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Connector & Ports (MB)
HDMI
1 x HDMI 1.4b (max. resolution 4096 x 2160 @ 30 Hz)
USB (s)
Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)
Realtek RTL8111H ASUS LANGuard
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x COM Debug header 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
D-Sub (s)
1x D-sub (max. resolution 1920 x 1200 @ 60 Hz)
Supported Storage
4 x SATA 6Gb/s connector(s)
Others
Special Features
ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS SafeSlot Core+ - Prevent graphics card damage - ASUS DIGI+ VRM: Premium components provide better power efficiency Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
Warranty Information
Manufacturing Warranty
03 Years
Part ID: #CAN-02131
Last Updated: 2 days ago
