Product Description

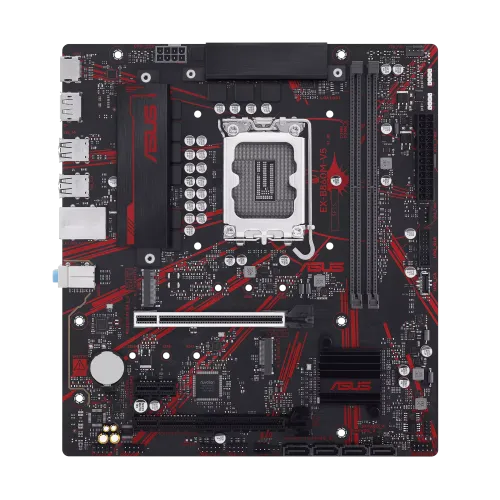

Unlock Unmatched Performance with the ASUS EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
Designed for gamers, content creators, and professionals who demand unparalleled computing power, the ASUS EX-B860M-V5 LGA 1851 Micro-ATX Motherboard is the ultimate solution for building a high-performance desktop PC. With its cutting-edge Intel B860 chipset and LGA 1851 socket compatibility, this motherboard is engineered to deliver exceptional speed, efficiency, and reliability.
Key Features and Benefits
- Supports Intel Core Ultra Processors Series 2 with LGA 1851 socket compatibility
- Two DIMM slots with up to 128GB of DDR5 RAM at speeds of 8800+MT/s OC
- Realtek 7.1 Surround Sound High Definition Audio CODEC with premium audio capacitors and dedicated PCB layers
- Two M.2 slots with one supporting PCIe 5.0 x4 speeds and four SATA 6Gb/s ports with Intel Rapid Storage Technology and RAID support
- Realtek 2.5Gb Ethernet with ASUS LANGuard for added protection
- ASUS 5X PROTECTION III with DIGI+ VRM, SafeSlot Core+, and a stainless-steel back I/O for long-term durability
ASUS Proprietary Technologies
ASUS 5X PROTECTION III
Experience unparalleled system stability and reliability with ASUS 5X PROTECTION III, a comprehensive suite of technologies that safeguard your system against power surges, overvoltage, and overheating. DIGI+ VRM ensures precise voltage regulation, while SafeSlot Core+ provides a secure and stable mounting system for your graphics card. The stainless-steel back I/O adds an extra layer of durability, making this motherboard perfect for demanding environments.
Part ID: #CAN-01049
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Sell Tech
Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
|
In Stock | 20,400 | 4 hours ago | |
|
Skyland BD
Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
|
In Stock | 20,700 | 4 hours ago | |
|
Star Tech
Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
|
In Stock | 21,200 | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset
INTEL B860
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI
Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
M.2 Socket
2x M.2
Memory
Type
DDR5
Slots
2
Supported Memory
2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory
Maximum Memory Capacity 128GB
Graphics
Graphics
1 x DisplayPort 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4a
USB (s)
Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
LAN Port (s)
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID
SATA RAID 0/1/5/10
Audio
3 x Audio jacks
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard
Warranty Information
Manufacturing Warranty
3 Year warranty
Key Features
Model
EX-B860M-V5
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
2x DDR5, Max 128GB, 8800+MT/s (OC)
Graphics Output
1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
Features
2x M.2, Realtek 2.5Gb LAN
Part ID: #CAN-01049
Last Updated: 1 month ago
