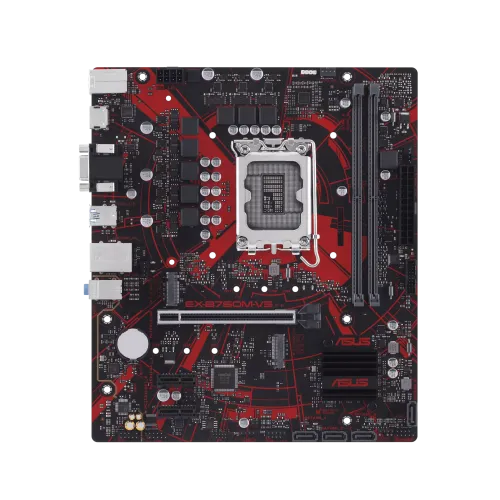

ASUS EX-B760M-V5 D4 mATX Motherboard

Status
In Stock
3 stores
Lowest Out of Stock
Price Range Single price listing
ASUS EX-B760M-V5 D4 mATX Motherboard

Product Description

**ASUS EX-B760M-V5 D4 mATX Motherboard: Unleash Your Gaming Potential**

The ASUS EX-B760M-V5 D4 mATX motherboard is designed for iCafes, gaming systems, and quality-driven businesses seeking robust performance and durability. With its cutting-edge technology and reliability, this motherboard is perfect for non-stop action, making it ideal for iCafe setups, configure-to-order gaming systems, and professional environments focused on quality.

**Key Features and Benefits**

Technical Specifications:

  • Supports Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
  • 2x PCIe 4.0 x16 slots and 2x PCIe 4.0 x1 slots for seamless expansion
  • Supports up to 64GB DDR4 5333 (OC) memory for high-speed performance
  • Realtek 2.5 Gb Ethernet for quick and reliable networking
  • 2x M.2 slots for fast storage solutions and PCIe 4.0 compatibility
  • Dedicated audio capacitors, audio shielding, and premium audio PCB layers for superior sound quality
**ASUS Proprietary Technologies and Performance Features**

Unlock the Power of ASUS

The ASUS EX-B760M-V5 D4 motherboard incorporates ASUS 5X PROTECTION III, providing comprehensive protection features and ensuring overall system stability and reliability. Additionally, it features LANGuard for enhanced surge protection, SafeSlot Core+ for reinforced PCIe slot protection, and a stainless-steel back I/O that is corrosion-resistant for longer-lasting performance.

Part ID: #CAN-01430 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech ASUS EX-B760M-V5 D4 mATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Skyland BD ASUS EX-B760M-V5 D4 mATX Motherboard
In Stock 16,000 3 hours ago
Buy Now
Sell Tech ASUS EX-B760M-V5 D4 mATX Motherboard
Check Stock 16,000 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Premium audio capacitors - Audio Shielding - Dedicated audio PCB layers

Expansion Slots

PCI Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
M.2 Socket 2 x M.2 slots

Memory

Type DDR4
Slots 2x DIMM
Supported Memory 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB

Graphics

Graphics Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI 1 x HDMI port
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet port
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3x Audio jacks
Internal I/O Ports Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header

Others

Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard

Warranty Information

Manufacturing Warranty 3 years warranty

Key Features

Model EX-B760M-V5 D4
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 2x DDR4, Max 64GB 5333(O.C.)
Graphics Output 1x HDMI port, 1x DisplayPort
Features 1x VGA port, 1 x HDMI port
