Product Description

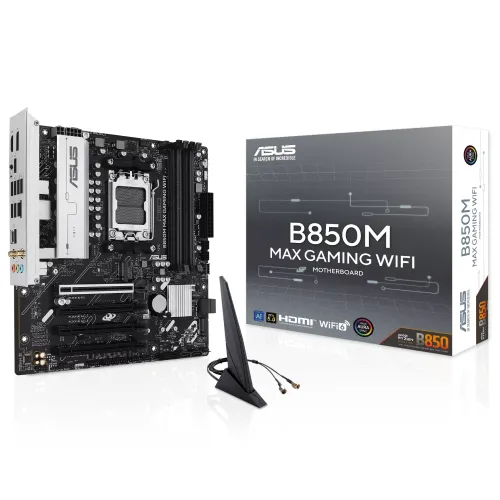

Unleash the Power of Your Gaming PC with the ASUS B850M MAX GAMING WIFI AM5 mATX Motherboard
Designed for serious gamers and PC enthusiasts, the ASUS B850M MAX GAMING WIFI AM5 mATX Motherboard is built to deliver exceptional speed, stability, and performance for your modern computing needs. With its AMD B850 chipset and support for AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this motherboard is the perfect choice for those seeking to take their gaming experience to the next level.
Key Features and Benefits
- Supports up to 256GB of DDR5 memory with speeds reaching 8000+MT/s (OC) and dual-channel architecture
- Three M.2 slots supporting PCIe 5.0 and 4.0 modes for high-speed storage and expansion
- Four SATA 6Gb/s ports for reliable data storage and transfer
- Realtek 1Gb Ethernet with ASUS LANGuard and built-in Wi-Fi 6 for seamless online gaming and data transfers
- Supports RAID 0, 1, 5, and 10 configurations through AMD RAIDXpert2 Technology for maximum performance and data security
Advanced Technologies for Enhanced Performance and Cooling
The ASUS B850M MAX GAMING WIFI AM5 mATX Motherboard incorporates several advanced technologies to ensure optimal performance and cooling. This includes ASUS 5X PROTECTION III, which provides comprehensive protection against power surges and electrical stress, as well as Aura Sync RGB lighting for customizable and immersive gaming experiences.
Part ID: #CAN-01091
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
Asus B850M MAX GAMING WIFI AMD DDR5 mATX Motherboard
|
In Stock | 28,500 | 5 hours ago | |
|
Ultra Technology
Asus B850M MAX GAMING WIFI AM5 mATX Motherboard
|
In Stock | 28,800 | 4 hours ago | |
|
Star Tech
Asus B850M MAX GAMING WIFI AM5 mATX Motherboard
|
In Stock | 29,200 | 1 week ago | |
|
Global Brand PLC
ASUS B850M MAX GAMING WIFI AMD Ryzen AM5 mATX Gaming Motherboard
|
In Stock | 29,200 | 5 hours ago | |
|
PCB Store
ASUS B850M MAX AM5 WIFI ATX GAMING Motherboard
|
Check Stock | 28,700 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B850 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) 3 x PCIe 4.0 x16 slot (support x1 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) 3 x PCIe 4.0 x16 slot (support x1 mode)
M.2 Socket
Supports 3 x M.2 slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* AMD B850 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory
256GB
Graphics
Graphics
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 9 ports) 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 5 x USB 2.0 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C) 2 x USB 5Gbps header support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A
LAN Port (s)
1 x Realtek 1Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.4
Supported Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* AMD B850 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
RAID
AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O Ports
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 5 x USB 2.0 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 2 x USB 5Gbps header support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS Driver Hub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B850M MAX GAMING WIFI
Supported CPU
Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
Supported RAM
4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
Graphics Output
1 x HDMI port, 1 x DisplayPort
Features
3 x M.2 slots, Wi-Fi 6, Bluetooth v5.4, 1 x Realtek 1Gb Ethernet
