Product Description
Powerful Gaming Solution for the Modern PC Enthusiast

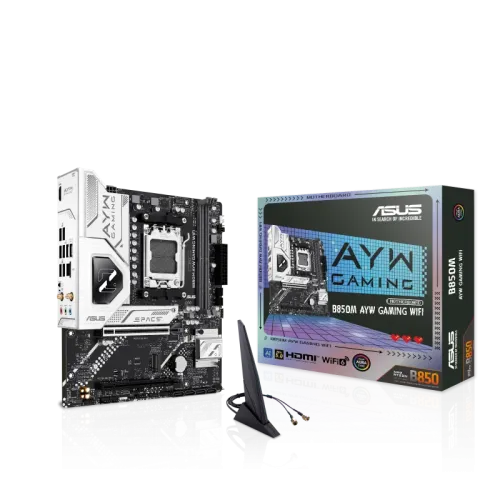

The Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard is a high-performance solution designed for gamers and PC enthusiasts seeking robust performance and top-tier features. Built with the latest AMD B850 chipset, this motherboard supports the latest Ryzen 9000, 8000, and 7000 Series Desktop Processors, delivering exceptional speed and efficiency.
Key Features and Benefits
Technical Specifications:
- Supports up to 128GB DDR5 RAM with speeds reaching up to 8200+MT/s (OC)
- Fast Storage Expansion with 2 x M.2 slots and 4 x SATA 6Gb/s ports supporting PCIe 5.0/4.0 speeds and RAID configurations (RAID 0/1/5/10)
- Robust Connectivity with built-in Wi-Fi 6, Bluetooth 5.3, and Realtek 2.5Gb Ethernet with ASUS LANGuard
- Immersive Audio through the Realtek 7.1 Surround Sound CODEC, supporting 24-bit/192kHz playback
- High-End Cooling with dedicated M.2 and VRM heatsinks, and ASUS Q-Design features like Q-LED, Q-DIMM, and M.2 Q-Latch
Advanced Technologies and Features
Asus Exclusive Features:
This motherboard boasts a range of proprietary technologies and features that enhance its performance and user experience. These include:
- ASUS 5X PROTECTION III, a comprehensive protection system that safeguards the motherboard from power surges, overvoltage, and overheating
- ASUS Q-Design, a user-friendly design that simplifies installation and diagnostics with features like Q-LED, Q-DIMM, and M.2 Q-Latch
- ASUS EZ DIY, a suite of tools that makes it easy to customize and optimize the motherboard's performance
- Aura Sync RGB Lighting, a feature that allows users to personalize the motherboard's lighting effects with a wide range of colors and patterns
Part ID: #CAN-01068
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Sell Tech
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
|
In Stock | 26,200 | 5 hours ago | |
|
Skyland BD
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
|
In Stock | 26,200 | 4 hours ago | |
|
TechLand BD
ASUS B850M AYW GAMING WIFI AMD AM5 mATX Gaming Motherboard
|
In Stock | 26,500 | 5 hours ago | |
|
Ultra Technology
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
|
In Stock | 26,800 | 4 hours ago | |
|
Star Tech
Asus B850M AYW GAMING WIFI AM5 m-ATX Motherboard
|
In Stock | 27,200 | 1 week ago | |
|
Global Brand PLC
ASUS B850M AYW GAMING WIFI AMD AM5 mATX Gaming Motherboard
|
In Stock | 27,200 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B850 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode)
M.2 Socket
AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Memory
Type
DDR5
Slots
2 x DIMM
Supported Memory
Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8400+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory
128GB
Graphics
Graphics
1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1x HDMI 2.1
USB (s)
Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
LAN Port (s)
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module
Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
RAID
AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - Pre-mounted I/O shield - BIOS FlashBack™ button - BIOS FlashBack™ LED - SafeSlot Aura Sync - Addressable RGB Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS DriverHub TurboV Core ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B850M AYW GAMING WIFI
Supported CPU
Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
Supported Memory
2 x DIMM, Max. 128GB, Up to 8200+MT/s(OC)
Graphics Output
1 x HDMI port Supports 4K@60Hz
Features
Realtek 2.5Gb Ethernet, Wi-Fi 6, Realtek 7.1 Surround Sound
Part ID: #CAN-01068
Last Updated: 1 month ago
