Product Description

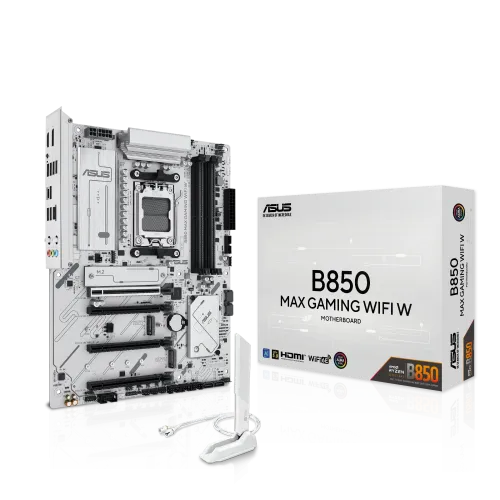

Unlock Unmatched Performance with the ASUS B850 MAX GAMING WIFI W
The ASUS B850 MAX GAMING WIFI W is a powerhouse motherboard designed for gamers and power users who demand the latest features and next-gen compatibility. Built on the powerful AMD B850 chipset, this ATX motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors through the latest AM5 socket, making it a future-proof investment.
Key Features and Benefits
What You Can Expect:
- Support for up to 256GB DDR5 RAM with speeds up to 8000+ MT/s (OC)
- Four PCIe 5.0, 4.0, and 3.0 slots for high-performance expansion
- Three ultra-fast M.2 slots and four SATA 6Gb/s ports with full RAID support
- Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth 5.2 for fast and reliable networking
- Realtek 7.1 Surround Sound High Definition Audio CODEC for high-fidelity playback
ASUS Proprietary Technologies
Experience the Power of ASUS Innovation:
The ASUS B850 MAX GAMING WIFI W features a range of proprietary technologies designed to deliver exceptional performance, reliability, and aesthetics. These include:
- ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, and Stainless-steel back I/O
- ASUS Q-Design: Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, and Q-Slot
- ASUS Thermal Solution: Flexible M.2 heatsink and VRM heatsink design
- ASUS EZ DIY: BIOS FlashBack button, BIOS FlashBack LED, pre-mounted I/O shield, and SafeSlot Aura Sync
Part ID: #CAN-01115
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
ASUS B850 MAX GAMING WIFI W AMD MOTHERBOARD
|
In Stock | 33,900 | 5 hours ago | |
|
Star Tech
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
|
In Stock | 35,000 | 1 week ago | |
|
TechLand BD
ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard
|
In Stock | 35,000 | 5 hours ago | |
|
PCB Store
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
|
In Stock | 35,000 | 5 hours ago | |
|
Sell Tech
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
|
In Stock | 35,000 | 5 hours ago | |
|
Ultra Technology
ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard
|
In Stock | 35,200 | 4 hours ago | |
|
Skyland BD
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
|
In Stock | 35,500 | 4 hours ago | |
|
Global Brand PLC
ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard
|
In Stock | 35,900 | 5 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B850 Chipset
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) 2 x PCIe 3.0 x16 slots (support x1 mode)
M.2 Socket
AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Specifications vary by CPU types.
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual-channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Maximum Memory
256GB
Graphics
Graphics
1 x DisplayPort 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1 x DisplayPort
USB (s)
Rear USB (Total 8 ports) 4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A
LAN Port (s)
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.3 WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Supported Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Specifications vary by CPU types.
RAID
AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Internal I/O Ports
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 10Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers
Bundled Software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS Driver Hub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B850 MAX GAMING WIFI W
Supported CPU
Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
Supported Memory
4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
Graphics Output
1 x HDMI port, 1 x DisplayPort
Features
Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
Part ID: #CAN-01115
Last Updated: 1 month ago
