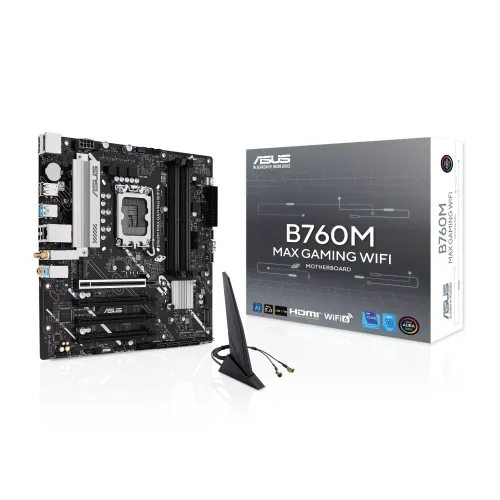

ASUS B760M MAX GAMING WIFI mATX Motherboard

Status
In Stock
4 stores
Lowest 21,000 BDT
Price Range 21,000 to 21,800 BDT Save 4%
ASUS B760M MAX GAMING WIFI mATX Motherboard

Product Description

Unleash Gaming Potential with the ASUS B760M MAX GAMING WIFI mATX Motherboard

The ASUS B760M MAX GAMING WIFI mATX Motherboard is designed for gamers and PC builders who demand high-performance, stability, and modern connectivity. This motherboard offers a powerful platform for gaming rigs and productivity systems, delivering exceptional performance and compatibility with the latest Intel processors.

Key Features and Benefits

This motherboard boasts the following key features and benefits:

  • Supports Intel Core 12th, 13th, and 14th Gen processors, delivering fast and efficient performance for gaming, streaming, and multitasking.
  • Dual DDR5 DIMM slots support up to 192GB of memory with advanced overclocking capabilities.
  • Features PCIe 5.0 x16 SafeSlot for next-generation GPUs and multiple PCIe 4.0 slots for expansion.
  • Includes Wi-Fi 6E for ultra-fast wireless speeds and Intel 2.5Gb Ethernet for stable wired connections.
  • Offers high-quality audio with Realtek codec and immersive sound through HDMI and DisplayPort outputs.
Advanced Technologies and Design

This motherboard incorporates ASUS' proprietary technologies to ensure efficient performance, cooling, and aesthetics:

ASUS 5X PROTECTION III provides comprehensive protection for the motherboard, including DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, and Stainless-Steel Back I/O.

The motherboard features robust VRM design, heatsinks, and ASUS Fan Xpert software to maintain efficient cooling under heavy loads.

Customizable RGB lighting enhances the aesthetics of any gaming setup, while the micro-ATX form factor makes it suitable for compact cases.

Part ID: #CAN-01053 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
TechLand BD ASUS B760M MAX GAMING WIFI Intel LGA1700 DDR5 mATX Motherboard
In Stock 21,000 5 hours ago
Buy Now
Star Tech ASUS B760M MAX GAMING WIFI mATX Motherboard
In Stock 21,200 1 week ago
Buy Now
Ultra Technology ASUS B760M MAX GAMING WIFI mATX Motherboard
In Stock 21,200 4 hours ago
Buy Now
Global Brand PLC ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard
In Stock 21,800 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion Slots

PCI Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slot (support x1 mode)
M.2 Socket 3 x M.2

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Maximum Memory Max. 192GB

Graphics

Graphics 1 x DisplayPort** 1 x HDMITM port*** * Graphics specifications may vary between CPU types

Connector & Ports

HDMI 1 x HDMI 2.1
Display Port (s) 1 x DisplayPort 1.4
USB (s) Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet ASUS LANGuard
Wireless Communication module Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 *The Bluetooth version may vary,
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports
RAID * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Aura Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet 3 x Audio jacks
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)

Others

Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool AURA Sync - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760M MAX GAMING WIFI
Supported CPU 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM 4 x DIMM, 7200+ (OC), Max. 192GB, DDR5
Storage 3 x M.2 slots, 4 x SATA 6Gb/s ports
Features Realtek 1Gb Ethernet, Wi-Fi 6, Bluetooth 5.3
