Product Description

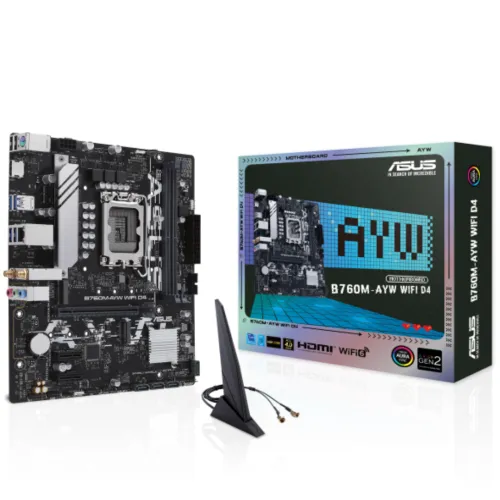

Unlock Your Gaming Potential with the ASUS B760M-AYW WIFI D4 mATX Motherboard

The ASUS B760M-AYW WIFI D4 mATX Motherboard is a powerhouse for gamers and content creators, delivering exceptional performance and versatility in a compact mATX form factor. With its robust feature set and reliable build quality, this motherboard is the perfect choice for those seeking a seamless computing experience.

Key Features and Benefits

Supports Intel 14th, 13th, and 12th Gen processors for exceptional performance and compatibility
Up to 64GB of DDR4 memory at speeds of up to 5333MHz (OC) for quick and seamless performance
Realtek 2.5Gb Ethernet and Wi-Fi 6 for fast and reliable networking
Two PCIe 4.0 x16 and two PCIe 4.0 x1 slots for expanded device support and graphics capabilities
Four SATA 6Gb/s ports and two M.2 slots with PCIe 4.0 x4 mode for versatile storage options

ASUS Exclusive Technologies

The ASUS B760M-AYW WIFI D4 mATX Motherboard is equipped with a range of innovative features, including:

5X PROTECTION III for enhanced reliability and durability

Aura Sync RGB for customizable lighting effects and aesthetics

DIGI+ VRM for optimized power delivery and efficient cooling

VRM Heatsink Design for improved thermal management and reduced noise

Armoury Crate and other ASUS software for easy system monitoring and tuning

Experience the ultimate in PC performance and customization with the ASUS B760M-AYW WIFI D4 mATX Motherboard.

Part ID: #CAN-01292 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
Star Tech ASUS B760M-AYW WIFI D4 mATX Motherboard	In Stock	Call for Price	1 week ago	Buy Now
Ultra Technology Asus B760M-AYW WIFI D4 LGA1700 Micro-ATX Motherboard	In Stock	18,800	4 hours ago	Buy Now
Skyland BD ASUS B760M-AYW WIFI D4 mATX Motherboard	In Stock	20,200	4 hours ago	Buy Now
Global Brand PLC Asus B760M-AYW WIFI D4 LGA1700 Micro-ATX Motherboard	In Stock	20,300	5 hours ago	Buy Now
Sell Tech ASUS B760M-AYW WIFI D4 mATX Motherboard	Check Stock	19,700	4 hours ago	Buy Now
TechLand BD ASUS B760M-AYW WIFI D4 mATX Motherboard	Check Stock	20,300	5 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset Intel B760 Chipset

BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Form Factor mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots

M.2 Socket 2 x M.2 slots Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Memory

Type DDR4

Slots 2 x DIMM

Supported Memory 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)

Maximum Memory 64GB

Graphics

Graphics 1 x HDMI port Graphics specifications may vary between CPU types Supports 4K@60Hz as specified in HDMI 2.1

Connector & Ports

HDMI 1 x HDMI

USB (s) Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports

LAN Port (s) 1 x Realtek 2.5Gb Ethernet

Wireless Communication module Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2

Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Audio 3 x audio jacks

Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)

Others

Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers

Bundled Software ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760M-AYW WIFI D4

Supported CPU 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)

Supported RAM 2 x DIMM, Max. 64GB, DDR4

Storage 2 x M.2 slots, 4 x SATA 6Gb/s ports

Features Realtek 2.5Gb Ethernet, Wi-Fi 6, PCIe 4.0 x16 slot
