Product Description

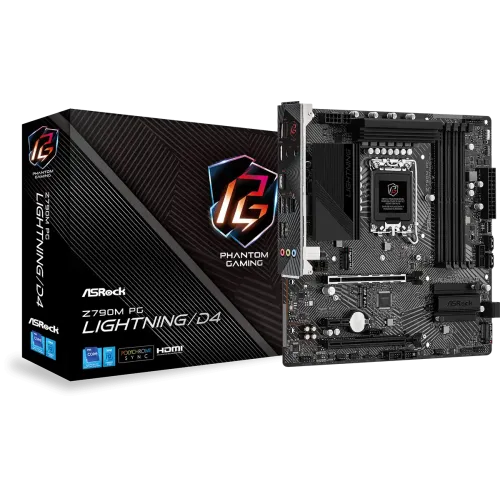

Unlock Your Gaming Potential with the ASRock Z790M PG Lightning/D4 Motherboard
The ASRock Z790M PG Lightning/D4 Micro ATX Motherboard is designed for serious gamers and PC enthusiasts who demand top-notch performance and reliability. By supporting 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700), this motherboard is built to deliver lightning-fast speeds and seamless multitasking.
Technical Specifications and Features
Key Features:
- Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700)
- 10+1+1 Phase Power Design with Dr.MOS for VCore+GT
- 4 x DDR4 DIMMs, supporting up to 5333+(OC)
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) and Nahimic Audio
- Intel 1G LAN and 1 x HDMI graphics output option
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, and 1 M.2 Key-E for WiFi
ASRock Proprietary Technologies
ASRock Innovations:
The ASRock Z790M PG Lightning/D4 motherboard comes equipped with several cutting-edge technologies that enhance your gaming experience. The 10+1+1 Phase Power Design with Dr.MOS for VCore+GT delivers efficient power delivery, while the Nahimic Audio provides an immersive listening experience. Additionally, the motherboard features a range of cooling solutions, including smart fan speed control and addressable LED headers, to keep your system running smoothly.
Part ID: #CAN-01187
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock Z790M PG Lightning/D4 Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
ASRock Z790M PG Lightning/D4 13th Gen & 12th Gen Micro ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
Nexus Computer
ASRock Z790M PG Lightning/D4 13th Gen & 12th Gen M-ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
- Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT)
Chipset
Intel Z790
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Expansion Slots
PCI
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode - 1 x PCIe 3.0 x1 Slot (PCIE2) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire
Memory
Type
DDR4
Slots
4 x DDR4 DIMM Slots
Supported Memory
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory
128GB
Graphics
Graphics
- Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
Connector & Ports
HDMI
1 x HDMI Port
USB (s)
- 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
LAN Port (s)
- Gigabit LAN 10/100/1000 Mb/s - Intel I219V
Supported Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports
- 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
TPM (Trusted Platform Module )
1 x SPI TPM Header
Others
Special Features
Rock-Solid Durability - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
Z790M PG Lightning/D4
Supported CPU
14thGen, 13th Gen & 12th Gen Intel Core Processors (LGA1700)
Supported RAM
4 x DDR4 DIMMs, up to 5333+(OC)
Graphics Output
1x HDMI
Features
Intel 1G LAN
