Product Description

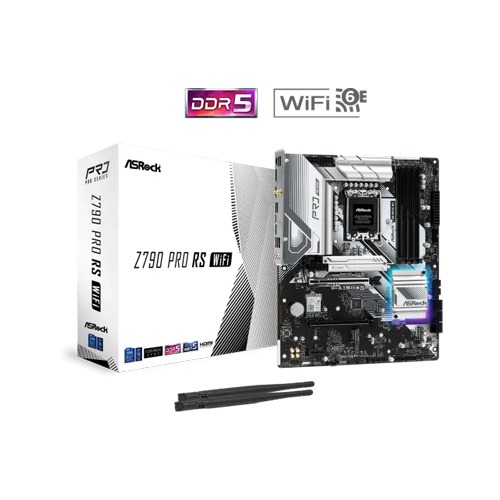

ASRock Z790 Pro RS WiFi DDR5 ATX Motherboard
Unlock your PC's full potential with the ASRock Z790 Pro RS WiFi DDR5 ATX Motherboard, designed for high-performance gaming, content creation, and productivity. This premium motherboard supports Intel's 14th, 13th, and 12th Gen Core processors, providing seamless integration and maximum compatibility with the latest CPUs.
Key Features and Benefits
- Supports DDR5 memory with speeds up to 7200 MHz (OC) and a maximum capacity of 256GB, ensuring optimal performance for memory-intensive tasks.
- PCIe 5.0 x16 slot for ultra-fast graphics card performance, ensuring optimal gaming and productivity experiences.
- Wi-Fi 6E & Bluetooth 5.3 support for the latest wireless technology, ensuring high-speed internet and Bluetooth connections.
- 2.5G LAN port and Dragon RTL8125BG for fast, stable, and low-latency network connections.
- Multiple M.2 and SATA3 ports for extensive storage options with high-speed data transfer.
Advanced Technologies and Features
Power and Performance
The ASRock Z790 Pro RS WiFi DDR5 ATX Motherboard features a 14+1+1 power phase configuration with 50A Dr.MOS for VCore and GT, providing enhanced stability and overclocking potential. This motherboard also includes a robust thermal management system, with an integrated I/O shield and enlarged heatsink armor for superior cooling performance.
Customizable Lighting and Audio
The Z790 Pro RS offers customizable RGB lighting with Polychrome SYNC, allowing you to personalize your system's aesthetic. Additionally, the motherboard features high-definition audio powered by Realtek ALC897 with Nahimic Audio, delivering immersive sound quality.
Easy System Management and Updates
The motherboard includes advanced BIOS features such as EZ Mode, Instant Flash, and Auto Driver Installer, making it easy to manage and update your system.
Part ID: #CAN-02202
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
ASRock Z790 Pro RS WiFi 14th Gen, 13th Gen & 12th Gen ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
Nexus Computer
ASRock Z790 Pro RS WiFi DDR5 ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
Ultra Technology
ASRock Z790 Pro RS WiFi 14th, 13th and 12th Gen DDR5 ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Information
Chipset Manufacturer
Intel Z790
Audio
HD Audio Jacks: Line in / Front Speaker / Microphone
BIOS Type
128Mb AMI UEFI Legal BIOS with GUI support
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Display Port (s)
1 x DisplayPort 1.4 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Graphics
- Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Maximum Memory Supported
256GB
Memory Type
DDR5
PCI
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Slots
4 x DDR5 DIMMs
Special Features
Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
TPM (Trusted Platform Module )
1 x SPI TPM Header
Wireless Communication module
802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO
Main Features
Supported CPU
- Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT)
Memory Specifications
Supported Memory
- Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) - Supports Intel Extreme Memory Profile (XMP) 3.0
Connector & ports
HDMI
1 x HDMI Port
Internal I/O Ports
- 1 x eDP Signal Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) Rear Panel I/O - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
LAN Port (s)
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors
USB (s)
- 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) All USB ports support ESD Protection
Warranty Information
Warranty
3 years Warranty
