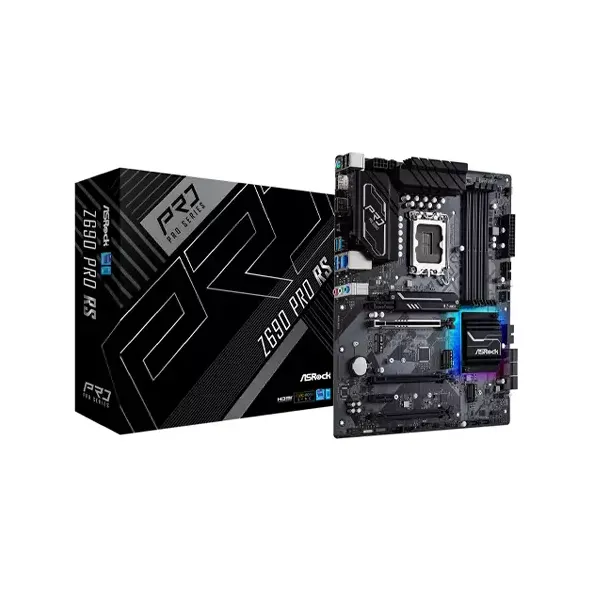

ASROCK Z690 PRO RS ATX 12TH GEN INTEL MOTHERBOARD

Status
In Stock
5 stores
Lowest 22,200 BDT
Price Range 22,200 to 25,000 BDT Save 11%
ASROCK Z690 PRO RS ATX 12TH GEN INTEL MOTHERBOARD

Product Description

Unlock Your PC's Full Potential with the ASRock Z690 Pro RS

Designed for demanding users who require high-performance computing, the ASRock Z690 Pro RS motherboard is the perfect choice for gamers, content creators, and power users. With its advanced features and robust design, this motherboard is engineered to deliver exceptional performance, stability, and flexibility.

Key Features and Benefits

  • Supports 12th Gen Intel Core Processors (LGA1700) and the latest PCIe 5.0 standard, enabling breathtaking bandwidth and future-proofing for high-end graphics cards
  • Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio for immersive listening experiences
  • 6 Layer PCB with 2-ounce copper inner layers, providing stable signal traces and power shapes for memory overclocking
  • Dragon 2.5 Gb/s LAN for maximum networking performance and demanding requirements
  • Supports DDR4 5000MHz (OC) and multiple M.2 storage devices, including one PCIe 4.0 M.2 SSD
  • Heavy graphics card holder for secure and adjustable installation

Advanced Technologies and Proprietary Features

The ASRock Z690 Pro RS motherboard boasts cutting-edge technologies and proprietary features that enhance its performance and functionality. Its 13 Phase Dr.MOS Power Design, along with the 6 Layer PCB and 2-ounce copper inner layers, provides a stable and efficient power delivery system. The motherboard also features onboard RGB headers and an addressable RGB header, allowing for seamless synchronization with Polychrome RGB Sync-certified accessories.

Part ID: #CAN-01564 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Nexus Computer ASRock Z690 Pro RS 12th Gen Motherboard
In Stock 22,200 4 hours ago
Buy Now
TechLand BD ASROCK Z690 PRO RS ATX 12TH GEN INTEL MOTHERBOARD
In Stock 25,000 5 hours ago
Buy Now
Creatus Computer ASRock Z690 Pro RS 12th Gen ATX Motherboard
Check Stock Call for Price 5 hours ago
Buy Now
Ultra Technology ASRock Z690 Pro RS 12th Gen ATX Motherboard
Check Stock Call for Price 4 hours ago
Buy Now
PCB Store ASROCK Z690 Pro RS ATX 12th Gen Intel Motherboard
Check Stock 26,000 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection)
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
HDMI 1 x HDMI Port
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio
Slots 3 x PCIe x16 Slots (PCIE2/PCIE3/PCIE5: single at Gen5x16 (PCIE2); dual at Gen5x16 (PCIE2) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))* 2 x PCIe Gen3x1 Slots Supports AMD CrossFire 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Memory Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)* Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 128GB Supports Intel® Extreme Memory Profile (XMP) 2.
Chipset Intel Z690
Graphics Intel® Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Warranty 3 Years
Dimension 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Form Factor ATX Form Factor Solid Capacitor design 2oz Copper PCB
Supported CPU Supports 12th Gen Intel Core Processors (LGA1700) Digi Power design 13 Power Phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology
Supported Storage 8 x SATA3 6.0 Gb/s Connectors* 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode** 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes** 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode
External I/O Ports 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Internal I/O Ports 3 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone
Part ID: #CAN-01564 Last Updated: 1 month ago
