Product Description

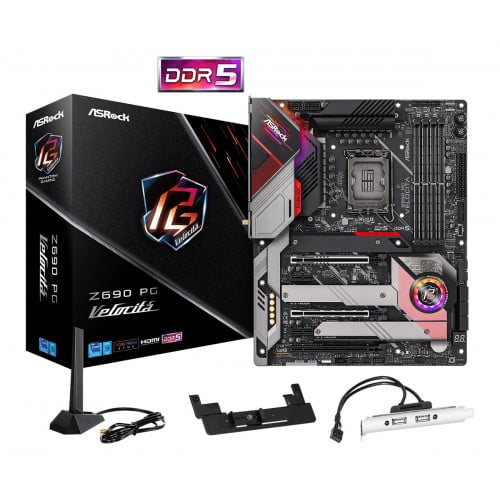

Engineered by ASRock, this motherboard is designed for **LGA1700** socket processors, built on the **Z690** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **49,100 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-02203
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Information
Type
DDR5
Display Port (s)
1 x DisplayPort 1.4
M.2 Socket
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
PCI
- 3 x PCIe x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3); triple at Gen5x16 (PCIE1) / Gen4x4 (PCIE3) / Gen3x2 (PCIE5)) - 2 x PCIe Gen3x1 Slots - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Slots
4 x DDR5 DIMM Slots
Wireless Communication module
802.11ax Wi-Fi 6E Module
Main Features
Audio
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)
BIOS
- 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN_AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Chipset
Intel Z690
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB
Supported CPU
- Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 17 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports ASRock Hyper BCLK Engine V
Graphics Specifications
Graphics Memory
- Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Memory Specifications
Maximum Memory
128GB
Supported Memory
- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) - Supports Intel Extreme Memory Profile (XMP) 3.0 - 15μ Gold Contact in DIMM Slots
Connector & ports
HDMI
1 x HDMI Port
Internal I/O Ports
- 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 6 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button
LAN Port (s)
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) Killer E3100 2.5G LAN, Intel Gigabit LAN - Supports Killer LAN Software - Supports Killer DoubleShot Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Supported Storage
- 6 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode - 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode RAID: - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB (s)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Warranty Information
Warranty
3 years
