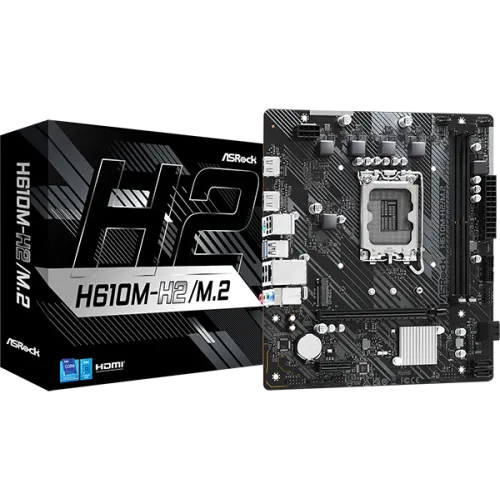

ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard

Product Description

Unlock Your PC's Potential with the ASROCK H610M-H2/M.2 Motherboard

Designed for enthusiasts and power users, the ASROCK H610M-H2/M.2 motherboard is the perfect foundation for your next PC build, delivering exceptional performance and reliability for demanding tasks and applications. With its robust feature set and support for the latest 14th, 13th, and 12th Gen Intel Core processors, this motherboard is engineered to drive your creativity, productivity, and gaming experiences to new heights.

Key Features and Benefits:

  • Supports 14th, 13th, and 12th Gen Intel Core processors with the LGA1700 socket
  • Dual-channel DDR4 memory support up to 3200MHz for enhanced performance and efficiency
  • One PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for flexible expansion options
  • Four SATA3 ports and one Ultra M.2 slot (PCIe Gen3 x4) for high-speed storage and SSDs
  • Robust connectivity with four USB 3.2 Gen1 ports and six USB 2.0 ports

ASROCK Exclusive Technologies:

ASRock's Advanced Power Design and Cooling Solutions

The ASROCK H610M-H2/M.2 motherboard features a 3+1+1 phase power design for efficient power delivery and a robust cooling system with multiple fan headers and a Smart Fan Speed Control feature. Additionally, the motherboard includes ASRock's Auto Driver Installer for hassle-free system setup and ASRock's EZ Mode for easy UEFI interface navigation.

Part ID: #CAN-01236 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
In Stock Call for Price 1 week ago
Creatus Computer ASROCK H610M-H2/M.2 12th, 13th and 14th Gen mATX DDR4 Motherboard
In Stock 9,800 5 hours ago
TechLand BD ASROCK H610M-H2/M.2 mATX DDR4 14th Gen Intel Motherboard
Check Stock 9,100 5 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset Intel H610
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Expansion Slots

PCI - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
M.2 Socket - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*

Memory

Type Dual Channel DDR4 Memory Technology
Slots 2 x DDR4 DIMM Slots
Supported Memory - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel® Extreme Memory Profile (XMP) 2.0
Maximum Memory 64GB

Graphics

Graphics - Intel® Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Connector & Ports

HDMI 2 x HDMI Port
USB (s) - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front)
LAN Port (s) - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H
Supported Storage - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Internal I/O Ports 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto-detect if 3-pin or 4-pin fan is in use.
TPM (Trusted Platform Module ) - 1 x SPI TPM Header

Others

Bundled Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model H610M-H2/M.2
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supports Up to DDR4 3200MHz
Graphics Output 2x HDMI
Features Realtek ALC897 7.1 CH HD Audio Codec
Part ID: #CAN-01236 Last Updated: 1 month ago
