Product Description

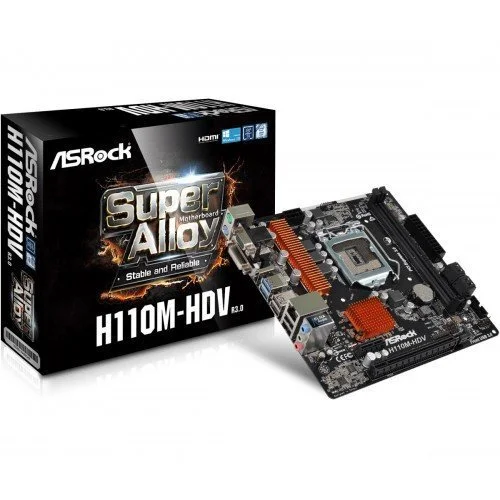

Upgrade Your Build with the ASRock H110M-HDV R3.0 Super Alloy
Designed for home users and small businesses, the ASRock H110M-HDV R3.0 Super Alloy motherboard offers a reliable and efficient platform for building a powerful PC. With its robust features and high-quality components, this motherboard is perfect for those looking to create a stable and future-proof system.
Key Features and Benefits
- Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1151)
- 4 Power Phase design for efficient power delivery
- 7.1 CH HD Audio with Realtek ALC887 Audio Codec and ELNA Audio Caps
- Supports DDR4 2400/2133 non-ECC, un-buffered memory and ECC UDIMM memory modules
- Intel HD Graphics Built-in Visuals with support for 4K x 2K resolution at 24Hz / (3840x2160) at 30Hz
- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Advanced Technologies
The ASRock H110M-HDV R3.0 Super Alloy motherboard features ASRock's proprietary Super Alloy technology, which provides high-quality components and improved durability. Additionally, this motherboard supports ASRock's Full Spike Protection, which offers robust ESD protection for your system.
Part ID: #CAN-01923
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
- Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1151) - 4 Power Phase design - Supports CPU up to 95W - Supports Intel Turbo Boost 2.0 Technology
Chipset
- Intel H110
BIOS
- 64Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.0V Voltage Multi-adjustment
Form Factor
- Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm - Solid Capacitor design
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps
Expansion Slots
PCI
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 1 x PCI Express 2.0 x1 Slot
Memory
Type
Dual Channel DDR4 Memory Technology
Slots
- 2 x DDR4 DIMM Slots
Supported Memory
- Supports DDR4 2400/2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Mamory
32GB
Graphics
Graphics
- Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530/630 - Pixel Shader 5.0, DirectX 12 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) at 24Hz / (3840x2160) at 30Hz - Supports DVI-D with max. resolution up to 1920x1200 at 60Hz - Supports D-Sub with max. resolution up to 1920x1200 at 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Max Shared Memory
1024MB
Connector & Ports
HDMI
1 x HDMI Port
USB (s)
Connector: - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O: - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))* - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
LAN Port (s)
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111C/RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports PXE - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage
- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Audio
Connector: - 1 x Front Panel Audio Connector Rear Panel I/O: - HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports
- 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))* - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
D-Sub (s)
- 1 x D-Sub Port
DVI-D (s)
- 1 x DVI-D Port
Warranty Information
Manufacturing Warranty
03 years warranty
Others
Special Features
ASRock Super Alloy - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop
Bundled Software
- ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI)
Part ID: #CAN-01923
Last Updated: 1 month ago
