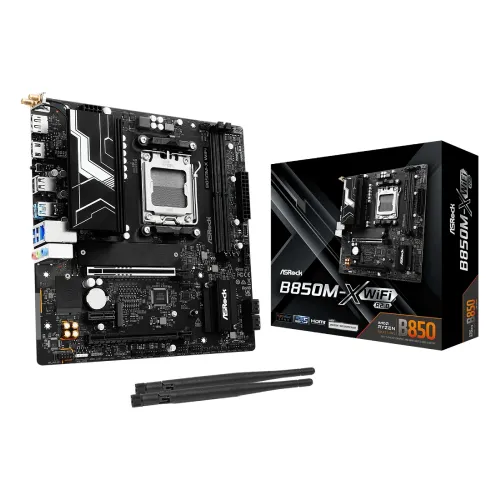

ASRock B850M-X R2.0 WiFi AMD AM5 mATX Motherboard

Status
In Stock
1 stores
Lowest 18,000 BDT
Price Range Single price listing
ASRock B850M-X R2.0 WiFi AMD AM5 mATX Motherboard

Product Description

Upgrade Your Gaming and Productivity with the ASRock B850M-X R2.0 WiFi Motherboard

The ASRock B850M-X R2.0 WiFi motherboard is designed for gamers and content creators who demand high-performance, reliability, and versatility. With its advanced features and sleek design, this motherboard is perfect for building a powerful and efficient PC that meets your needs for both gaming and productivity.

Key Features and Benefits

  • Supports AMD Ryzen 9000, 8000, and 7000 series processors for Socket AM5
  • Dual-channel DDR5 memory up to 8200+(OC) with a maximum capacity of 128GB
  • Integrated AMD RDNA graphics with HDMI 2.1 and DisplayPort 1.4 outputs up to 4K 120Hz
  • Two 2.5G Gigabit LAN ports for fast networking and Wi-Fi 6E for wireless connectivity
  • One PCIe 5.0 x16 slot, one PCIe 4.0 x1 slot, and one PCIe 4.0 x16 slot (x4 mode) for expansion
  • Supports RAID 0, 1, and 10 for both SATA and M.2 NVMe devices

Advanced Technologies and Design

The ASRock B850M-X R2.0 WiFi motherboard features a range of advanced technologies and design elements that enhance its performance, durability, and user experience. The motherboard includes a 6+1+1 power phase design with Dr.MOS for VCore, providing stable power delivery and reducing power loss. Additionally, the motherboard features smart fan speed control, multiple chassis/water pump connectors, and a 2oz copper PCB for added durability.

Detailed Specifications and Connectivity

The ASRock B850M-X R2.0 WiFi motherboard also offers a range of connectivity options, including HDMI, DisplayPort, USB 3.2 Gen1 Type-C, three USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, Gigabit LAN, Wi-Fi antenna ports, HD audio jacks, and a BIOS Flashback button. Internal headers support RGB and addressable LED strips, multiple fan connectors, and USB 3.2 Gen1 Type-C.

Part ID: #CAN-01026 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech ASRock B850M-X R2.0 WiFi AMD AM5 mATX Motherboard
In Stock 17,900 1 week ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset AMD B850
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio

Expansion Slots

PCI CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
M.2 Socket - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Memory

Type Dual Channel DDR5 Memory Technology
Slots 2 x DDR5 DIMM Slots
Supported Memory Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory 128GB

Graphics

Graphics Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Connector & Ports

HDMI 1 x HDMI 2.1 TMDS/FRL 8G Compatible
Display Port (s) 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
USB (s) - 3 x USB 3.2 Gen1 Type-A (Rear) - 1 x USB 2.0 (Rear (USB_2)) Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 2 x USB 3.2 Gen1 Type-A (Front) - 5 x USB 2.0 (1 Rear (USB_1), 4 Front)
LAN Port (s) - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software
Wireless Communication module - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO
Supported Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors
RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
Internal I/O Ports - 1 x Thermistor Cable Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone

Others

Special Features Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, Dr.MOS for Vcore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter
Bundled Software Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model B850M-X R2.0 WiFi
Supported CPU Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
Supported RAM 2x DDR5, Up to 8200+(OC), Max 128GB
Graphics Output 1x HDMI 2.1, 1x DisplayPort
Features 2.5G Gigabit LAN, 2 x M.2
Part ID: #CAN-01026 Last Updated: 1 month ago
