Product Description

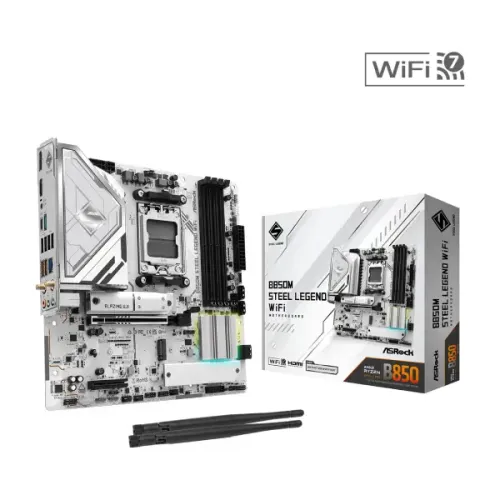

Unlock Unmatched Power and Performance with the ASRock B850M STEEL LEGEND WIFI AM5 DDR5 mATX Motherboard
The ASRock B850M STEEL LEGEND WIFI AM5 DDR5 Motherboard is a cutting-edge, feature-rich micro ATX solution designed to meet the demands of power users who crave the latest speed, durability, and future-proof compatibility. Engineered to deliver exceptional performance, this board is perfect for gamers, professionals, and PC enthusiasts who want to unleash the full potential of their system.
Key Features and Technical Specifications
- Supports AMD Ryzen 9000, 8000, and 7000 Series Processors on AM5 Socket for unparalleled processing power and next-gen features
- Four DDR5 DIMM slots supporting up to 256GB of ECC/non-ECC un-buffered memory with overclocking potential beyond 8000MHz (OC)
- Integrated AMD RDNA graphics with one HDMI 2.1 and one DisplayPort 1.4, supporting up to 4K resolution at 120Hz with HDR and HDCP 2.3
- One PCIe 5.0 x16 slot and one PCIe 4.0 x4 slot for GPUs and add-in cards, plus three M.2 slots for storage and expansion
- 2.5G Dragon RTL8125BG LAN with smart bandwidth control and a visual UI for optimized gaming, streaming, or browsing
- 802.11be 2x2 Wi-Fi 7 Module supporting tri-band (2.4GHz/5GHz/6GHz) connectivity, MU-MIMO, 160MHz bandwidth, and Bluetooth 5.4
Advanced Technologies and Features
ASRock's Exclusive Technologies
The ASRock B850M STEEL LEGEND WIFI Motherboard boasts several proprietary technologies that set it apart from the competition. These include a 12+2+1 power phase Dr.MOS VRM design, premium 20K black capacitors, and a flexible integrated I/O shield for enhanced thermal performance and durability. Additionally, this board features a Realtek ALC1220 7.1CH codec enhanced with Nahimic Audio, impedance sensing, and individually layered PCB for left/right audio channels.
Part ID: #CAN-01084
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock B850M STEEL LEGEND WIFI AM5 DDR5 mATX Motherboard
|
In Stock | 26,000 | 1 week ago | |
|
Creatus Computer
ASRock B850M Steel Legend WiFi AMD Motherboard
|
In Stock | 26,399 | 4 hours ago | |
|
Ultra Technology
ASRock B850M STEEL LEGEND WIFI AM5 DDR5 mATX Motherboard
|
In Stock | 26,500 | 4 hours ago | |
|
Skyland BD
ASRock B850M STEEL LEGEND WIFI AM5 DDR5 mATX Motherboard
|
In Stock | 27,500 | 3 hours ago | |
|
TechLand BD
ASRock B850M STEEL LEGEND WIFI 7 AM5 DDR5 mATX Motherboard
|
Check Stock | 27,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset
AMD B850
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm 2oz Copper PCB
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Expansion Slots
PCI
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors
Memory
Type
Dual Channel DDR5 Memory Technology
Slots
4 x DDR5 DIMM Slots
Supported Memory
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules
Maximum Memory
256GB
Graphics
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
HDMI
1 x HDMI 2.1
Display Port (s)
1 x DisplayPort 1.4
USB (s)
CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Wireless Communication module
- 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO
Supported Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio
1 x Front Panel Audio Connector
Internal I/O Ports
Rear Panel I/O: - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Others
Special Features
Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 12+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B850M STEEL LEGEND WIFI
Supported CPU
Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, Up to 8000+(OC), Max 256GB
Graphics Output
1x HDMI 2.1, 1x DisplayPort 1.4
Features
2.5G LAN, 802.11be 2x2 Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01084
Last Updated: 1 month ago
