Product Description

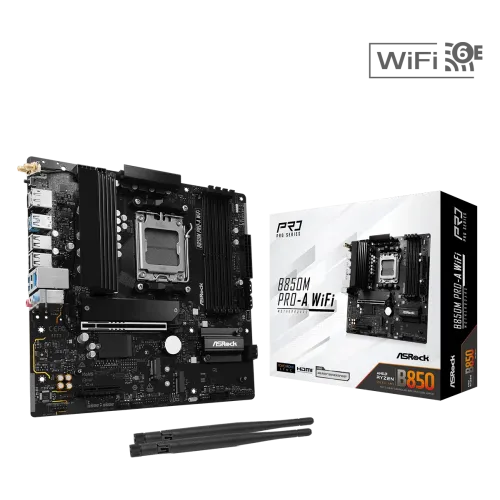

Unlock Unparalleled Performance with the ASRock B850M Pro-A WiFi
The ASRock B850M Pro-A WiFi AM5 DDR5 mATX Motherboard is designed to meet the demands of gamers, creators, and professionals seeking a powerful and compact micro ATX solution. With its cutting-edge features and next-generation performance, this motherboard is the perfect choice for those who require lightning-fast data transmission and future-proof compatibility.
Key Features and Performance Highlights
- Supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series processors with the AMD B850 chipset
- Dual channel DDR5 memory technology with four DIMM slots offering up to 256GB capacity and support for DDR5 ECC and non-ECC unbuffered memory
- PCIe Gen5 graphics and M.2 storage support for rapid data transmission and future-proof compatibility
- 2.5G LAN powered by Dragon RTL8125BG with smart bandwidth control software and visual consumption data
- 802.11axe WiFi 6E module with dual-band 2x2 diversity antennas, Bluetooth 5.2, MU-MIMO, and extended 6GHz band capability
Advanced Technologies and Features
The ASRock B850M Pro-A WiFi features several proprietary technologies designed to enhance performance and user experience. The motherboard includes a powerful 8+2+1 power phase Dr.MOS design, which provides stable power delivery to the CPU and other components. Additionally, the motherboard supports ASRock's EZ Update, EZ Troubleshooter, and Post Status Checker software, making it easier to update and troubleshoot the system.
Part ID: #CAN-01326
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock B850M Pro-A WiFi AM5 DDR5 mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Skyland BD
ASRock B850M Pro-A WiFi AM5 DDR5 mATX Motherboard
|
In Stock | 24,999 | 3 hours ago | |
|
TechLand BD
ASRock B850M Pro-A WiFi AMD Micro ATX Motherboard
|
Check Stock | 24,999 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset
AMD B850
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors
Memory
Type
Dual Channel DDR5 Memory Technology
Slots
4 x DDR5 DIMM Slots
Supported Memory
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory
256GB
Graphics
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
Connector & Ports
HDMI
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Display Port (s)
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
USB (s)
CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Wireless Communication module
- 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO
Supported Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio
1 x Front Panel Audio Connector
Internal I/O Ports
- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
TPM (Trusted Platform Module )
1 x SPI TPM Header
Others
Special Features
Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B850M Pro-A WiFi
Supported CPU
Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, Up to 8000+(OC), Max 256GB
Graphics Output
1x HDMI 2.1, 1x DisplayPort 1.4
Features
2.5G LAN, 802.11axe Wi-Fi 6E Module, Bluetooth 5.2
