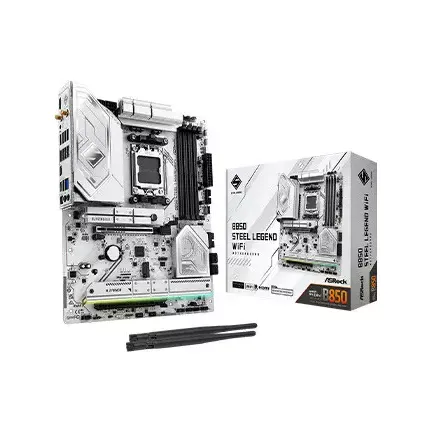

ASRock B850 Steel Legend WiFi Motherboard - Unleash Performance and Efficiency

Designed for gamers, creators, and professionals, the ASRock B850 Steel Legend WiFi motherboard is a powerhouse that delivers high performance and efficiency. Built on the AMD B850 chipset, this motherboard supports the latest AMD Ryzen 7000, 8000, and 9000 series processors.

Exceptional Performance and Connectivity

Supports up to 256GB of DDR5 memory for seamless multitasking and high-performance applications
Features PCI Express 5.0 x16 and PCI Express 4.0 x16 slots for faster data transfer rates
Multiple M.2 sockets, including Blazing M.2 and Hyper M.2, for lightning-fast PCIe Gen5x4 and Gen4x4 SSDs
Supports high-speed NVMe SSDs for reduced load times and seamless performance
Equipped with Dragon RTL8125BG LAN for stable and high-speed network connectivity
Includes built-in WiFi for hassle-free wireless experience

Advanced Technologies and Durability

The ASRock B850 Steel Legend WiFi motherboard features 15µ Gold Contact in VGA PCIe Slot, ensuring reliable signal transmission and durability. The ATX form factor offers excellent airflow and compatibility with various PC cases. Additionally, this motherboard supports the latest AMD Ryzen processors, leveraging the Zen 3 architecture for enhanced performance and efficiency.

Part ID: #CAN-01573 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
TechLand BD ASRock B850 Steel Legend WiFi AMD ATX Motherboard	In Stock	Call for Price	5 hours ago	Buy Now
Creatus Computer ASRock B850 STEEL LEGEND WIFI AM5 AMD ATX Motherboard	In Stock	32,500	5 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

General Specifications

OS - Microsoft Windows 10 64-bit / 11 64-bit

LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority Control

USB CPU:- 2 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))Chipset:- 1 x USB 3.2 Gen2x2 Type-C (Front)- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)- 8 x USB 2.0 (4 Rear, 4 Front)

BIOS - 256Mb AMI UEFI Legal BIOS with GUI support

Raid Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

WiFi - 802.11be 2x2 Wi-Fi 7 Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be- Supports 2.4GHz/5GHz/6GHz* frequency band- Supports 160MHz channel bandwidth with 6GHz* frequency band- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.4- Supports MU-MIMO

Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)- Individual PCB Layers for R/L Audio Channel- Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)- Nahimic Audio

Slots CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Memory - Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)- Max. capacity of system memory: 256GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Chipset AMD B850

Graphics Integrated AMD RDNA graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, and max. resolution up to 4K 120Hz

Warranty 3 years

Accessories - 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x Thermistor Cable

Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm- 8 Layer PCB

Supported CPU Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Other Features Certifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Operating System - Microsoft Windows 10 64-bit / 11 64-bit

Software Features Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash

Supported Storage CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*ASMedia ASM1061:- 4 x SATA3 6.0 Gb/s Connectors

External I/O Ports - 2 x Antenna Ports- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)- 3 x USB 3.2 Gen1 Type-A Ports*- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**- 4 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack)

Internal I/O Ports - 1 x SPI TPM Header- 1 x Thermistor Cable Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
