Product Description

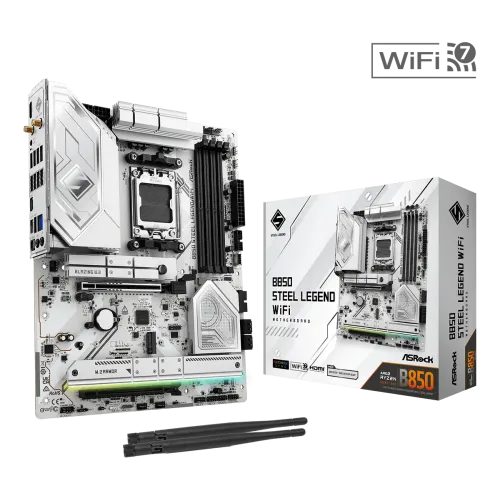

Unleash Next-Generation Performance with the ASRock B850 Steel Legend WiFi AM5 DDR5 ATX Motherboard
The ASRock B850 Steel Legend WiFi AM5 DDR5 ATX Motherboard is designed for gamers, creators, and professionals who demand exceptional performance, durability, and connectivity in their next-generation PCs. With its cutting-edge features and robust design, this motherboard is the perfect choice for those who want to unlock the full potential of their AMD Ryzen 9000, 8000, and 7000 Series processors.
Key Features and Performance Highlights- Supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series processors
- PCIe Gen5 graphics and blazing M.2 storage for future-ready speed and efficiency
- Dual Channel DDR5 memory technology with four DIMM slots and support for up to 8000+(OC) speeds
- 14+2+1 power phase architecture with 80A Dr.MOS and expanded heatsink protection
- 2.5G Dragon LAN with bandwidth management, visual statistics, and customizable priority modes
ASRock's Proprietary Technologies
The ASRock B850 Steel Legend WiFi AM5 DDR5 ATX Motherboard features a range of advanced technologies and features, including:
- ASRock's Polychrome SYNC RGB control for customizable lighting effects
- ASRock's Lightning Gaming Ports for high-speed connectivity
- ASRock's BIOS Flashback button for easy firmware updates
- Nahimic software for immersive audio experiences
- Realtek ALC4082 audio codec with 7.1 channel HD sound and direct drive headphone technology
Part ID: #CAN-01368
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset
AMD B850
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio
Expansion Slots
PCI
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Memory
Type
Dual Channel DDR5 Memory Technology
Slots
4 x DDR5 DIMM Slots
Supported Memory
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory
256GB
Graphics
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
HDMI
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
USB (s)
CPU: - 2 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3)) - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4)) - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Wireless Communication module
- 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO
Supported Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio
1 x Front Panel Audio Connector
Internal I/O Ports
Rear Panel I/O - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s) - 3 x USB 3.2 Gen1 Type-A Ports* - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) - 1 x SPI TPM Header - 1 x Thermistor Cable Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
TPM (Trusted Platform Module )
- 1 x SPI TPM Header
Others
Special Features
Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B850 Steel Legend WiFi
Supported CPU
Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, Up to 8000+(OC), Max 256GB
Graphics Output
1 x HDMI 2.1 TMDS/FRL 8G Compatible
Features
2.5G LAN, 802.11be Wi-Fi 7 Module, Bluetooth 5.4
Part ID: #CAN-01368
Last Updated: 1 month ago
