Status
In Stock
2 listings tracked
Lowest Deal
25,500
Best Deal
Price Range
Single price listing
Product Description
Engineered by ASRock, this motherboard is designed for **AM5** socket processors, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **25,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01439
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
OS
- Microsoft Windows 10 64-bit / 11 64-bit
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Settings for GameBrowser and Streaming Modes- User Customized Priority Control
USB
CPU:- 1 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen1 Type-C (Rear)- 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2))Chipset:- 1 x USB 3.2 Gen2x2 Type-C (Front)- 6 x USB 3.2 Gen1 Type-A (2 Rear(USB32_3 and USB32_4), 4 Front)- 10 x USB 2.0 (6 Rear, 4 Front)
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Raid
- Supports RAID 0 and RAID 1 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
WiFi
- 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 with extended 6GHz band* support- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.2- Supports MU-MIMO
Audio
Nahimic Audio
Slots
CPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Memory
- Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)- Max. capacity of system memory: 256GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Chipset
- AMD B850
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)
Warranty
3 years
Dimension
12.0-in x 9.6-in
Accessories
- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm- 8 Layer PCB
Audio codecs
7.1 CH HD Audio (Realtek ALC897 Audio Codec
Supported CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Other Features
Certifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Special Features
Connector -- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Software Features
Software- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash
Supported Storage
CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*- 2 x SATA3 6.0 Gb/s ConnectorsASMedia ASM1061:- 2 x SATA3 6.0 Gb/s Connectors
Internal I/O Ports
- 2 x Antenna Ports- 1 x HDMI Port- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)- 1 x USB 3.2 Gen1 Type-C Port (DP-alt mode supports DP1.4a)- 4 x USB 3.2 Gen1 Type-A Ports- 6 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / Microphone
Part ID: #CAN-01439
Last Updated: 2 days ago

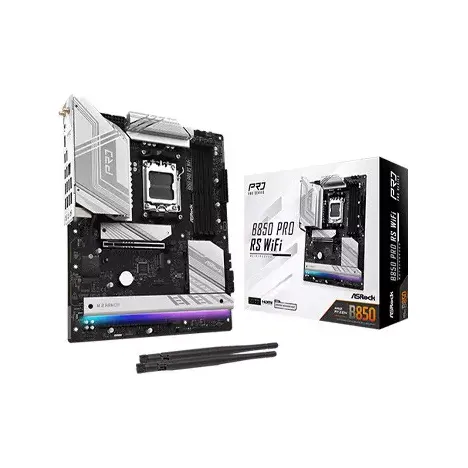

ASRock B850 PRO RS WIFI AM5 AMD ATX MotherboardThe ASRock B850 PRO RS WIFI AM5 AMD ATX Motherboard is a high-performance and feature-rich motherboard designed to support the latest AMD Ryzen 7000, 8000, and 9000 series processors. Built with the AMD B850 chipset, this motherboard delivers excellent processing power and seamless multitasking capabilities, making it an ideal choice for gamers, content creators, and PC enthusiasts.Superior Performance and ExpansionEquipped with a PCI Express 5.0 x16 slot, the ASRock B850 PRO RS ensures high-speed data transfer and superior graphics performance, especially when paired with high-end GPUs. It also features a PCI Express 4.0 x16 slot, allowing flexible expansion options. Additionally, the motherboard supports multiple M.2 slots, including one Blazing M.2 slot (PCIe Gen5x4) for ultra-fast SSD performance, ensuring rapid system boot-up and application loading times.Advanced Connectivity and NetworkingFor seamless networking, the motherboard comes with a Dragon RTL8125BG 2.5Gb LAN port and Wi-Fi 6 (802.11ax) support, ensuring stable and high-speed internet connectivity. Whether you're gaming online, streaming, or transferring large files, this motherboard delivers a reliable networking experience.Comprehensive Cooling and CustomizationThe ASRock B850 PRO RS includes multiple fan headers with smart speed control, ensuring efficient cooling for optimal system performance. It also features RGB and addressable LED headers, allowing users to customize their PC aesthetics with vibrant lighting effects.Enhanced Connectivity and DurabilityThe motherboard provides USB 3.2 Gen2x2 (Type-C), USB 3.2 Gen1, and USB 2.0 headers, ensuring versatile connectivity options for external devices. Its solid build quality, 15µ gold contacts in VGA PCIe slots, and robust design make it a durable and reliable choice for high-performance computing...
