Product Description

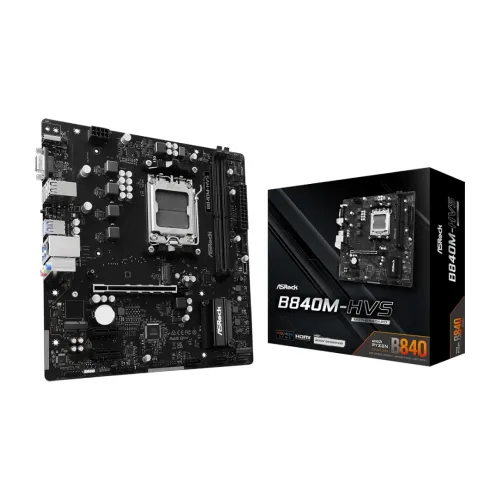

ASRock B840M-HVS AMD AM5 mATX Motherboard
Unlock the Power of Your PC
Designed for gamers, content creators, and professionals, the ASRock B840M-HVS AMD AM5 mATX Motherboard offers unparalleled performance, flexibility, and durability for modern PC builds. With its advanced features and robust design, this motherboard is the perfect choice for those seeking to take their computing experience to the next level.
Key Features and Benefits
- Supports AMD Ryzen 9000, 8000, and 7000 series processors for Socket AM5
- Dual-channel DDR5 memory support up to 6800+(OC) with a maximum capacity of 128GB
- Integrated AMD RDNA graphics with HDMI 2.1 output up to 4K 120Hz and D-Sub up to Full HD
- One PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, and an M.2 socket for WiFi modules
- Supports RAID 0, 1, and 10 for M.2 NVMe devices
Advanced Technologies and Design
The ASRock B840M-HVS features a 4+1+1 power phase design with Dr.MOS for Vcore, providing stable power delivery and efficient heat management. Its 2oz copper PCB ensures optimal signal quality and durability. Additionally, the motherboard includes smart fan speed control, multiple chassis/water pump fan connectors, and EZ update and troubleshooting tools like BIOS Flashback and Post Status Checker.
Part ID: #CAN-00993
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock B840M-HVS AMD AM5 mATX Motherboard
|
In Stock | 13,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset
AMD B840
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form Factor
Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm 2oz Copper PCB
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
Memory
Type
Dual Channel DDR5 Memory Technology
Slots
2 x DDR5 DIMM Slots
Supported Memory
Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory
128GB
Graphics
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Connector & Ports
HDMI
1 x HDMI 2.1 TMDS/FRL 8G Compatible
D-Sub (s)
1 x D-Sub
USB (s)
CPU: - 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)
Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H
Supported Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
Internal I/O Ports
- 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 4 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Others
Special Features
Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, Dr.MOS for Vcore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B840M-HVS
Supported CPU
Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
Supported RAM
2x DDR5, Up to 6800+(OC), Max 128GB
Graphics Output
1x HDMI 2.1, 1x D-Sub
Features
Gigabit LAN, 2 x M.2
