Product Description

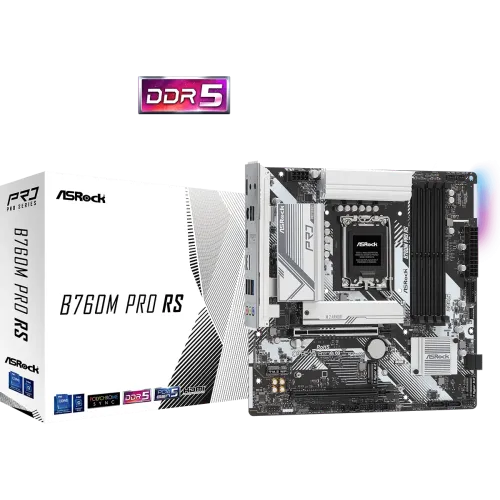

Unleash Your Creativity with the ASRock B760M Pro RS DDR5 mATX Motherboard
The ASRock B760M Pro RS DDR5 mATX Motherboard is designed for content creators, gamers, and professionals who demand high-performance and versatility from their PC. With its robust design and cutting-edge features, this motherboard is the perfect platform for building a powerful desktop PC that excels in any task.
Key Features and Technical Specifications:
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) with Intel Hybrid Technology
- Four DDR5 DIMM slots supporting dual-channel memory up to 7200+ MHz (OC)
- One PCIe 5.0 x16 slot and one PCIe 3.0 x16 slot for high-speed components and peripherals
- Four SATA3 ports and three Hyper M.2 slots (PCIe Gen4x4) for ample storage options
- Dragon 2.5G LAN and Killer 802.11ax WiFi 6E for fast and reliable network performance
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) and Nahimic Audio for immersive sound quality
Advanced Technologies and Design Features:
Robust Power Delivery and Cooling: The ASRock B760M Pro RS features a 7+1+1 power phase design with Dr.MOS for efficient VCore and GT performance, ensuring stable and reliable power delivery. The motherboard also includes a 6-layer PCB and high-quality components for efficient heat dissipation and durability.
Part ID: #CAN-01285
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock B760M Pro RS DDR5 mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Nexus Computer
ASRock B760M Pro RS DDR5 mATX Motherboard
|
In Stock | 18,800 | 4 hours ago | |
|
Skyland BD
ASRock B760M Pro RS DDR5 mATX Motherboard
|
In Stock | 18,900 | 4 hours ago | |
|
Sell Tech
ASRock B760M Pro RS DDR5 mATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Ultra Technology
ASRock B760M Pro RS DDR5 mATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset
Intel B760
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
Expansion Slots
PCI
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
Memory
Type
DDR5
Slots
4
Supported Memory
Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Maximum Memory
256GB
Graphics
Graphics
- Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
LAN Port (s)
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports
- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
TPM (Trusted Platform Module )
- 1 x SPI TPM Header
Others
Special Features
Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty
3 years Warranty
Key Features
Model
B760M Pro RS
Supported CPU
14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supported RAM
4x DDR5, Max 256GB 7200+(OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Part ID: #CAN-01285
Last Updated: 1 month ago
