Product Description

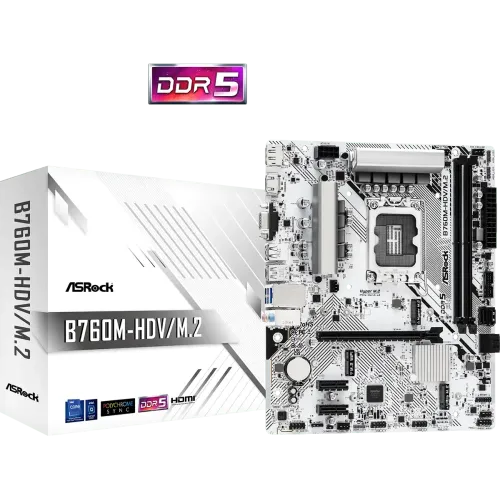

ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard
Upgrade Your Gaming Experience
Designed for gamers and content creators who demand high-performance systems, the ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard is a compact yet powerful solution that supports Intel's 14th, 13th, and 12th Gen Core processors with the LGA1700 socket. With its robust feature set and future-proof design, this motherboard is the perfect choice for building a powerful system that meets all your computing needs.
Key Features:
- Supports Intel's 14th, 13th, and 12th Gen Core processors with the LGA1700 socket
- Dual-channel DDR5 memory technology with speeds up to 7200+ MHz
- PCIe 4.0 x16 slot for high-performance graphics cards
- 2.5 Gigabit LAN for fast and reliable network performance
- Realtek ALC897 7.1 CH HD Audio Codec for high-quality sound
ASRock Exclusive Technologies:
ASRock's Innovative Technologies
The ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard features several innovative technologies that enhance system performance and stability. The motherboard's 7+1+1 power phase design delivers stable and efficient power distribution, while the ASRock Auto Driver Installer makes setup and installation a breeze. Additionally, the Dragon 2.5G LAN ensures fast and reliable network performance, making this motherboard an excellent choice for gamers and content creators.
Upgrade Your System Today
Part ID: #CAN-01261
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Nexus Computer
ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard
|
In Stock | 13,600 | 3 hours ago | |
|
Ultra Technology
ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard
|
Check Stock | Call for Price | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT)
Chipset
Intel B760
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory
Type
DDR5
Slots
2
Supported Memory
- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Supports Intel Extreme Memory Profile (XMP) 3.0
Maximum Memory
128GB
Graphics
Graphics
- Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
D-Sub (s)
1x D-Sub
USB (s)
- 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front)
LAN Port (s)
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage
Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports
Rear Panel I/O - 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
TPM (Trusted Platform Module )
- 1 x SPI TPM Header
Others
Special Features
Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase -ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760M-HDV/M.2
Supported CPU
14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supported RAM
2x DDR5, Max 128GB 7200+(OC)
Graphics Output
1x HDMI, 1x DisplayPort, 1x D-Sub
Features
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
