Product Description

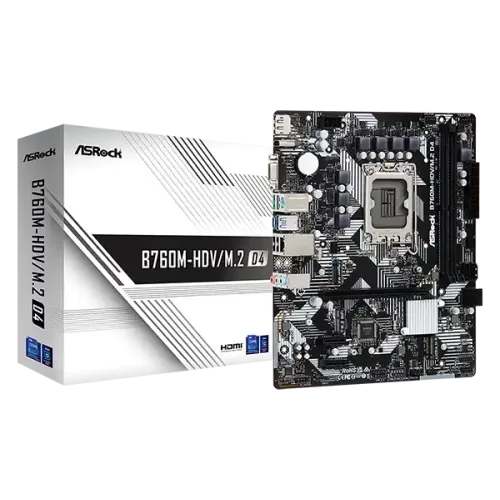

Engineered by ASRock, this motherboard is designed for **LGA1700** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-01257
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard
|
In Stock | Call for Price | 3 hours ago | |
|
Nexus Computer
ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard
|
In Stock | 13,100 | 2 hours ago | |
|
PC House
ASRock B760M-HDV/M.2 D4 13th and 12th Gen Micro ATX Motherboard
|
In Stock | 13,990 | 2 hours ago | |
|
Ultra Technology
ASRock B760M-HDV/M.2 D4 13th and 12th Gen Micro ATX Motherboard
|
Check Stock | Call for Price | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th Gen, 13th & 12th Gen and next-gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset
Intel B760
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Form Factor
Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory
Type
DDR4
Slots
2
Supported Memory
Dual Channel DDR4 Memory Technology Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
Maximum Memory
64GB
Graphics
Graphics
Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
D-Sub (s)
1 x D-Sub
USB (s)
1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 5 x USB 2.0 (2 Rear, 3 Front) * All USB ports support ESD Protection
LAN Port (s)
Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
Supported Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports
1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
TPM (Trusted Platform Module )
1 x SPI TPM Header
Others
Special Features
Rock-Solid Durability - 5+1+1 Power Phase EZ Update - ASRock Auto Driver Installer
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760M-HDV/M.2 D4
Supported CPU
14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supported RAM
2x DDR4, Max 64GB 5333+(OC)
Graphics Output
1x HDMI, 1x DisplayPort, 1x D-Sub
Features
Realtek 1G LAN
Part ID: #CAN-01257
Last Updated: 2 days ago
The ASRock B760M-HDV/M.2 D4 Motherboard supports 14th, 13th and 12th Gen Intel Core processors on the LGA1700 socket. With its 5+1+1 Power Phase design, it ensures stable power delivery for optimal performance. This motherboard supports speedy DDR4 memory clocked at 5333MHz (OC), allowing for smooth multitasking and efficient data handling. This 14th Gen Motherboard offers a range of expansion options, including 1 PCIe 4.0 x16 slot, 2 PCIe 3.0 x1 slots, and 1 M.2 Key E slot for WiFi connectivity. For graphics output, you have multiple choices with HDMI, DisplayPort, and D-Sub options. The Realtek ALC887/897 7.1 CH HD Audio Codec provides excellent audio quality for an immersive sound experience. It offers 4 SATA3 ports, 1 Hyper M.2 (PCIe Gen4x4), and 1 Ultra M.2 (PCIe Gen3x4 & SATA), ensuring you have plenty of options for connecting storage devices. The motherboard also features a convenient array of USB ports, including 1 USB 3.2 Gen1 Type-C at the rear, 5 USB 3.2 Gen1 Type-A (3 at the rear, 2 at the front), and 5 USB 2.0 ports (2 at the rear, 3 at the front). ASRock B760M-HDV/M.2 D4 Motherboard includes Realtek 1G LAN for reliable and high-speed networking. The ASRock Auto Driver Installer simplifies driver installation, making it user-friendly and convenient.Buy ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard from Star TechIn Bangladesh, you can get the original ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard From Star Tech. We have a large collection of the latest ASRock Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The ASRock B760M-HDV/M.2 D4 Motherboard comes with 3 years warranty.
