Product Description

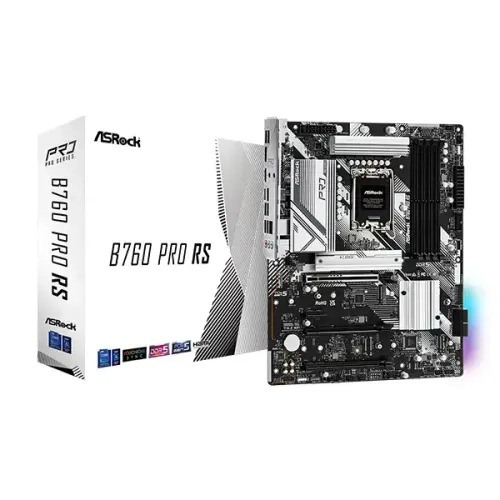

Upgrade Your Gaming Experience with the ASRock B760 Pro RS
Designed for the most demanding gamers and content creators, the ASRock B760 Pro RS motherboard is the perfect choice for those seeking unparalleled performance, reliability, and versatility. With its cutting-edge features and robust design, this motherboard is engineered to deliver top-notch results and provide a seamless computing experience.
Key Features and Benefits
- Supports 13th Gen and 12th Gen Intel Core processors with LGA1700 socket, ensuring compatibility with the latest CPU technologies.
- 4 DDR5 memory slots, supporting speeds up to 7200MHz (OC) for enhanced performance and multitasking capabilities.
- Multiple PCIe slots, including 2 PCIe 4.0 x16 and 1 PCIe 3.0 x16, for expansion possibilities and graphics card support.
- 2.5 Gigabit LAN with Dragon RTL8125BG for fast and reliable network connectivity.
- 7.1 CH HD Audio Codec with Nahimic Audio for high-quality audio output.
- Supports Intel Turbo Boost Max 3.0 Technology and Intel Adaptive Boost Technology (ABT) for optimized performance.
Advanced Technologies and Features
Rock-Solid Durability and Performance
The ASRock B760 Pro RS motherboard boasts a 7+1+1 Power Phase and 50A Dr.MOS for VCore+GT, ensuring efficient and stable power delivery to the CPU. Additionally, the motherboard supports PCIe Gen5 (Graphics) and dual-channel DDR5 memory, providing a robust foundation for demanding applications.
Connectivity and Expansion
With an array of connectivity options, including HDMI and DisplayPort for graphics output, USB 3.2 Gen2 Type-C and USB 3.2 Gen1 Type-C ports (both rear and front), as well as USB 3.2 Gen1 Type-A and USB 2.0 ports, the ASRock B760 Pro RS motherboard offers unparalleled flexibility and convenience. The motherboard also includes multiple M.2 slots for high-speed storage solutions and a range of internal I/O ports for easy connectivity.
Part ID: #CAN-02175
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
BASIC INFORMATION
Supported CPU
Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset
Intel B760
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Form Factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Expansion Slots
PCI
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
Connectivity
USB
2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) 1 x USB 3.2 Gen2 Type-A (Rear) 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection
Memory
Memory Type
DDR5
Slots
4
Supported Memory
Dual Channel DDR4 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Supports Intel Extreme Memory Profile (XMP) 2.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Maximum Memory
192GB
Graphics
Graphics
Intel Xe Graphics Architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Connector & Ports
HDMI
1x HDMI
Display Port
1 x eDP 1x DisplayPort
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supported Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
Internal I/O Ports
1 x eDP Signal Connector 1 x Power LED and Speaker Header 2 x RGB LED Headers 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
TPM (Trusted Platform Module )
1 x SPI TPM Header
Others
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Special Features
Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
WARRANTY INFORMATION
Warranty
3 Years
