Status
In Stock
4 stores
Lowest Deal
15,000 BDT
Best Deal
Price Range
15,000 to 15,200 BDT
Save 1%
Product Description

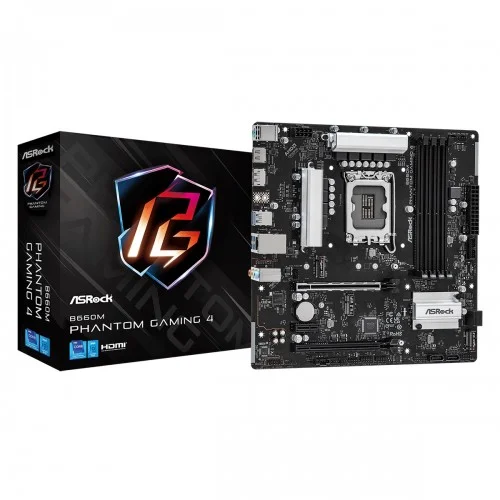

Unleash Your Gaming Potential with the ASRock B660M Phantom Gaming 4 Motherboard
Designed for enthusiasts and gamers, the ASRock B660M Phantom Gaming 4 motherboard is engineered to deliver exceptional performance, high-quality audio, and robust power delivery. With its 12th Gen Intel Core Processor support and Intel B660 chipset, this motherboard is the perfect choice for building a powerful gaming PC.
Key Features and Technical Specifications
- Supports 12th Gen Intel Core Processors (LGA1700) with Digi Power design and 8 Power Phase design
- Up to 128GB DDR4 memory capacity with support for DDR4 non-ECC, un-buffered memory up to 4800+(OC)
- Intel Xe Graphics Architecture (Gen 12) with dual graphics output, supporting HDMI 2.1 and DisplayPort 1.4 ports
- 4 x SATA3 6.0 Gb/s connectors, 1 x Hyper M.2 Socket (M2_1, Key M) supporting type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, and 1 x Hyper M.2 Socket (M2_2, Key M) supporting type 2280 PCIe Gen4x4 (64 Gb/s) mode
- Gigabit LAN 10/100/1000 Mb/s with Giga PHY Intel I219V, supporting Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, and UEFI PXE
Proprietary Technologies and Advanced Features
The ASRock B660M Phantom Gaming 4 motherboard boasts several advanced features, including:
- ASRock Super Alloy providing a premium power choke, sapphire black PCB, and high-density glass fabric PCB
- ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology for improved memory performance
- ASRock Hyper M.2 supporting PCIe Gen4x4 mode for fast storage devices
- ASRock Full Spike Protection for all USB, Audio, and LAN ports, ensuring reliable and stable connectivity
Part ID: #CAN-02106
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
PC House
ASRock B660M Phantom Gaming 4 13th Gen & 12th Gen Micro ATX Motherboard
|
In Stock | 15,000 | 4 hours ago | |
|
Nexus Computer
ASRock B660M Phantom Gaming 4 12th Gen Motherboard
|
In Stock | 15,200 | 3 hours ago | |
|
Ultra Technology
ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard
|
Check Stock | Call for Price | 3 hours ago | |
|
Creatus Computer
ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard
|
Check Stock | 14,100 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
- Supports 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 8 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology
Chipset
Intel B660
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection - Nahimic Audio
Expansion Slots
PCI
- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* - 1 x PCIe Gen3x1 Slot - Supports AMD CrossFire - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
Memory
Type
Dual Channel DDR4 Memory Technology
Slots
4 x DDR4 DIMM Slots
Supported Memory
- Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory
128GB
Graphics
Graphics
- Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Connector & Ports
HDMI
1 x HDMI Port
Display Port (s)
1 x DisplayPort 1.4
USB (s)
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection)
LAN Port (s)
- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Supported Storage
- 4 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio
- HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports
- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )
1 x SPI TPM Header
Warranty Information
Manufacturing Warranty
3 years
Others
Special Features
ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Part ID: #CAN-02106
Last Updated: 1 month ago
